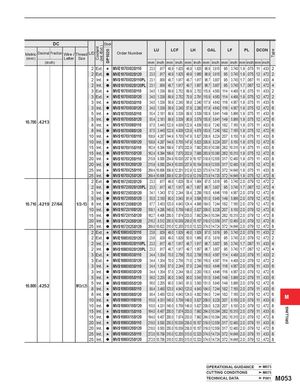

DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1070X02S110 23.3 .917 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 11 .433 2
2 Ext. a MVE1070X02S120 23.3 .917 48.9 1.925 49.9 1.965 96.9 3.815 95 3.740 1.9 .075 12 .472 2
2 Int. s MVS1070X02S110PL 23.1 .909 48.7 1.917 48.7 1.917 96.7 3.807 95 3.740 1.7 .067 11 .433 4
2 Int. a MVS1070X02S120PL 23.1 .909 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Ext. s MVE1070X03S110 34.0 1.339 69.9 2.752 69.9 2.752 115.9 4.563 114 4.488 1.9 .075 11 .433 2
3 Ext. s MVE1070X03S120 34.0 1.339 69.9 2.752 70.9 2.791 115.9 4.563 114 4.488 1.9 .075 12 .472 2
3 Int. s MVS1070X03S110 34.0 1.339 56.9 2.240 56.9 2.240 117.9 4.642 116 4.567 1.9 .075 11 .433 6
3 Int. a MVS1070X03S120 34.0 1.339 56.9 2.240 57.9 2.280 117.9 4.642 116 4.567 1.9 .075 12 .472 6
5 Int. s MVS1070X05S110 55.4 2.181 89.9 3.539 89.9 3.539 150.9 5.941 149 5.866 1.9 .075 11 .433 6
5 Int. a MVS1070X05S120 55.4 2.181 89.9 3.539 90.9 3.579 150.9 5.941 149 5.866 1.9 .075 12 .472 6
10.700 .4213
8 Int. s MVS1070X08S110 87.5 3.445 122.9 4.839 122.9 4.839 183.9 7.240 182 7.165 1.9 .075 11 .433 6
8 Int. a MVS1070X08S120 87.5 3.445 122.9 4.839 123.9 4.878 183.9 7.240 182 7.165 1.9 .075 12 .472 6
10 Int. s MVS1070X10S110 108.9 4.287 144.9 5.705 147.9 5.827 208.9 8.224 207 8.150 1.9 .075 11 .433 8
10 Int. a MVS1070X10S120 108.9 4.287 144.9 5.705 147.9 5.823 208.9 8.224 207 8.150 1.9 .075 12 .472 8
15 Int. s MVS1070X15S110 162.4 6.394 199.9 7.870 202.9 7.992 263.9 10.390 262 10.315 1.9 .075 11 .433 8
15 Int. a MVS1070X15S120 162.4 6.394 199.9 7.870 202.9 7.988 263.9 10.390 262 10.315 1.9 .075 12 .472 8
20 Int. s MVS1070X20S110 215.9 8.500 254.9 10.035 257.9 10.157 318.9 12.555 317 12.480 1.9 .075 11 .433 8
20 Int. a MVS1070X20S120 215.9 8.500 254.9 10.035 257.9 10.154 318.9 12.555 317 12.480 1.9 .075 12 .472 8
25 Int. s MVS1070X25S110 269.4 10.606 309.9 12.201 312.9 12.323 373.9 14.720 372 14.646 1.9 .075 11 .433 8
25 Int. a MVS1070X25S120 269.4 10.606 309.9 12.201 312.9 12.319 373.9 14.720 372 14.646 1.9 .075 12 .472 8
2 Ext. a MVE1072X02S120 23.3 .917 49.0 1.929 50.4 1.984 97.0 3.819 95 3.740 2.0 .079 12 .472 2
2 Int. a MVS1072X02S120PL 23.3 .917 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Int. a MVS1072X03S120 34.1 1.343 57.0 2.244 58.4 2.299 118.0 4.646 116 4.567 2.0 .079 12 .472 6
5 Int. a MVS1072X05S120 55.5 2.185 90.0 3.543 91.4 3.598 151.0 5.945 149 5.866 2.0 .079 12 .472 6
10.716 .4219 27/64 1/2-13 8 Int. a MVS1072X08S120 87.7 3.453 123.0 4.843 124.4 4.898 184.0 7.244 182 7.165 2.0 .079 12 .472 6
10 Int. a MVS1072X10S120 109.1 4.295 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 12 .472 8
15 Int. a MVS1072X15S120 162.7 6.406 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 12 .472 8
20 Int. a MVS1072X20S120 216.2 8.512 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 12 .472 8
25 Int. a MVS1072X25S120 269.8 10.622 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 12 .472 8
2 Ext. s MVE1080X02S110 23.6 .929 49.0 1.929 49.0 1.929 97.0 3.819 95 3.740 2.0 .079 11 .433 2
2 Ext. a MVE1080X02S120 23.6 .929 49.0 1.929 50.0 1.969 97.0 3.819 95 3.740 2.0 .079 12 .472 2
2 Int. s MVS1080X02S110PL 23.3 .917 48.7 1.917 48.7 1.917 96.7 3.807 95 3.740 1.7 .067 11 .433 4
2 Int. a MVS1080X02S120PL 23.3 .917 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Ext. s MVE1080X03S110 34.4 1.354 70.0 2.756 70.0 2.756 116.0 4.567 114 4.488 2.0 .079 11 .433 2
3 Ext. s MVE1080X03S120 34.4 1.354 70.0 2.756 71.0 2.795 116.0 4.567 114 4.488 2.0 .079 12 .472 2
3 Int. s MVS1080X03S110 34.4 1.354 57.0 2.244 57.0 2.244 118.0 4.646 116 4.567 2.0 .079 11 .433 6
3 Int. a MVS1080X03S120 34.4 1.354 57.0 2.244 58.0 2.283 118.0 4.646 116 4.567 2.0 .079 12 .472 6
5 Int. s MVS1080X05S110 56.0 2.205 90.0 3.543 90.0 3.543 151.0 5.945 149 5.866 2.0 .079 11 .433 6
5 Int. a MVS1080X05S120 56.0 2.205 90.0 3.543 91.0 3.583 151.0 5.945 149 5.866 2.0 .079 12 .472 6
10.800 .4252 M12x1.25
8 Int. s MVS1080X08S110 88.4 3.480 123.0 4.843 123.0 4.843 184.0 7.244 182 7.165 2.0 .079 11 .433 6
8 Int. a MVS1080X08S120 88.4 3.480 123.0 4.843 124.0 4.882 184.0 7.244 182 7.165 2.0 .079 12 .472 6
M
10 Int. s MVS1080X10S110 110.0 4.331 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 11 .433 8
10 Int. a MVS1080X10S120 110.0 4.331 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 12 .472 8
DRILLING
15 Int. s MVS1080X15S110 164.0 6.457 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 11 .433 8
15 Int. a MVS1080X15S120 164.0 6.457 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 12 .472 8
20 Int. s MVS1080X20S110 218.0 8.583 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 11 .433 8
20 Int. a MVS1080X20S120 218.0 8.583 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 12 .472 8
25 Int. s MVS1080X25S110 272.0 10.709 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 11 .433 8
25 Int. a MVS1080X25S120 272.0 10.709 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 12 .472 8
OPERATIONAL GUIDANCE M073
CUTTING CONDITIONS M075
TECHNICAL DATA P001 M053
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1070X02S110 23.3 .917 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 11 .433 2
2 Ext. a MVE1070X02S120 23.3 .917 48.9 1.925 49.9 1.965 96.9 3.815 95 3.740 1.9 .075 12 .472 2
2 Int. s MVS1070X02S110PL 23.1 .909 48.7 1.917 48.7 1.917 96.7 3.807 95 3.740 1.7 .067 11 .433 4
2 Int. a MVS1070X02S120PL 23.1 .909 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Ext. s MVE1070X03S110 34.0 1.339 69.9 2.752 69.9 2.752 115.9 4.563 114 4.488 1.9 .075 11 .433 2
3 Ext. s MVE1070X03S120 34.0 1.339 69.9 2.752 70.9 2.791 115.9 4.563 114 4.488 1.9 .075 12 .472 2
3 Int. s MVS1070X03S110 34.0 1.339 56.9 2.240 56.9 2.240 117.9 4.642 116 4.567 1.9 .075 11 .433 6
3 Int. a MVS1070X03S120 34.0 1.339 56.9 2.240 57.9 2.280 117.9 4.642 116 4.567 1.9 .075 12 .472 6
5 Int. s MVS1070X05S110 55.4 2.181 89.9 3.539 89.9 3.539 150.9 5.941 149 5.866 1.9 .075 11 .433 6
5 Int. a MVS1070X05S120 55.4 2.181 89.9 3.539 90.9 3.579 150.9 5.941 149 5.866 1.9 .075 12 .472 6
10.700 .4213
8 Int. s MVS1070X08S110 87.5 3.445 122.9 4.839 122.9 4.839 183.9 7.240 182 7.165 1.9 .075 11 .433 6
8 Int. a MVS1070X08S120 87.5 3.445 122.9 4.839 123.9 4.878 183.9 7.240 182 7.165 1.9 .075 12 .472 6
10 Int. s MVS1070X10S110 108.9 4.287 144.9 5.705 147.9 5.827 208.9 8.224 207 8.150 1.9 .075 11 .433 8
10 Int. a MVS1070X10S120 108.9 4.287 144.9 5.705 147.9 5.823 208.9 8.224 207 8.150 1.9 .075 12 .472 8
15 Int. s MVS1070X15S110 162.4 6.394 199.9 7.870 202.9 7.992 263.9 10.390 262 10.315 1.9 .075 11 .433 8
15 Int. a MVS1070X15S120 162.4 6.394 199.9 7.870 202.9 7.988 263.9 10.390 262 10.315 1.9 .075 12 .472 8
20 Int. s MVS1070X20S110 215.9 8.500 254.9 10.035 257.9 10.157 318.9 12.555 317 12.480 1.9 .075 11 .433 8
20 Int. a MVS1070X20S120 215.9 8.500 254.9 10.035 257.9 10.154 318.9 12.555 317 12.480 1.9 .075 12 .472 8
25 Int. s MVS1070X25S110 269.4 10.606 309.9 12.201 312.9 12.323 373.9 14.720 372 14.646 1.9 .075 11 .433 8
25 Int. a MVS1070X25S120 269.4 10.606 309.9 12.201 312.9 12.319 373.9 14.720 372 14.646 1.9 .075 12 .472 8
2 Ext. a MVE1072X02S120 23.3 .917 49.0 1.929 50.4 1.984 97.0 3.819 95 3.740 2.0 .079 12 .472 2
2 Int. a MVS1072X02S120PL 23.3 .917 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Int. a MVS1072X03S120 34.1 1.343 57.0 2.244 58.4 2.299 118.0 4.646 116 4.567 2.0 .079 12 .472 6
5 Int. a MVS1072X05S120 55.5 2.185 90.0 3.543 91.4 3.598 151.0 5.945 149 5.866 2.0 .079 12 .472 6
10.716 .4219 27/64 1/2-13 8 Int. a MVS1072X08S120 87.7 3.453 123.0 4.843 124.4 4.898 184.0 7.244 182 7.165 2.0 .079 12 .472 6
10 Int. a MVS1072X10S120 109.1 4.295 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 12 .472 8
15 Int. a MVS1072X15S120 162.7 6.406 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 12 .472 8
20 Int. a MVS1072X20S120 216.2 8.512 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 12 .472 8
25 Int. a MVS1072X25S120 269.8 10.622 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 12 .472 8
2 Ext. s MVE1080X02S110 23.6 .929 49.0 1.929 49.0 1.929 97.0 3.819 95 3.740 2.0 .079 11 .433 2
2 Ext. a MVE1080X02S120 23.6 .929 49.0 1.929 50.0 1.969 97.0 3.819 95 3.740 2.0 .079 12 .472 2
2 Int. s MVS1080X02S110PL 23.3 .917 48.7 1.917 48.7 1.917 96.7 3.807 95 3.740 1.7 .067 11 .433 4
2 Int. a MVS1080X02S120PL 23.3 .917 48.7 1.917 49.7 1.957 96.7 3.807 95 3.740 1.7 .067 12 .472 4
3 Ext. s MVE1080X03S110 34.4 1.354 70.0 2.756 70.0 2.756 116.0 4.567 114 4.488 2.0 .079 11 .433 2
3 Ext. s MVE1080X03S120 34.4 1.354 70.0 2.756 71.0 2.795 116.0 4.567 114 4.488 2.0 .079 12 .472 2
3 Int. s MVS1080X03S110 34.4 1.354 57.0 2.244 57.0 2.244 118.0 4.646 116 4.567 2.0 .079 11 .433 6
3 Int. a MVS1080X03S120 34.4 1.354 57.0 2.244 58.0 2.283 118.0 4.646 116 4.567 2.0 .079 12 .472 6
5 Int. s MVS1080X05S110 56.0 2.205 90.0 3.543 90.0 3.543 151.0 5.945 149 5.866 2.0 .079 11 .433 6
5 Int. a MVS1080X05S120 56.0 2.205 90.0 3.543 91.0 3.583 151.0 5.945 149 5.866 2.0 .079 12 .472 6
10.800 .4252 M12x1.25
8 Int. s MVS1080X08S110 88.4 3.480 123.0 4.843 123.0 4.843 184.0 7.244 182 7.165 2.0 .079 11 .433 6
8 Int. a MVS1080X08S120 88.4 3.480 123.0 4.843 124.0 4.882 184.0 7.244 182 7.165 2.0 .079 12 .472 6
M
10 Int. s MVS1080X10S110 110.0 4.331 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 11 .433 8
10 Int. a MVS1080X10S120 110.0 4.331 145.0 5.709 148.0 5.827 209.0 8.228 207 8.150 2.0 .079 12 .472 8
DRILLING
15 Int. s MVS1080X15S110 164.0 6.457 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 11 .433 8
15 Int. a MVS1080X15S120 164.0 6.457 200.0 7.874 203.0 7.992 264.0 10.394 262 10.315 2.0 .079 12 .472 8
20 Int. s MVS1080X20S110 218.0 8.583 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 11 .433 8
20 Int. a MVS1080X20S120 218.0 8.583 255.0 10.039 258.0 10.157 319.0 12.559 317 12.480 2.0 .079 12 .472 8
25 Int. s MVS1080X25S110 272.0 10.709 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 11 .433 8
25 Int. a MVS1080X25S120 272.0 10.709 310.0 12.205 313.0 12.323 374.0 14.724 372 14.646 2.0 .079 12 .472 8
OPERATIONAL GUIDANCE M073
CUTTING CONDITIONS M075
TECHNICAL DATA P001 M053
