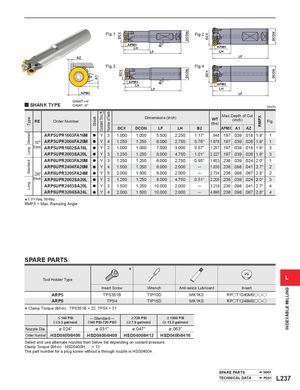

Общий каталог Mitsubishi 2020 - 2021 - страница 1412
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
Fig.1 Fig.2 APMX B2 LH APMX LF LH AZ LF Fig.3 Fig.4
APMX B2 LH APMX LF LH APMX LF SHANK TYPE GAMP :+4°
y GAMF :-6° (inch)
| RE Type | Order Number | tock | 1 ant Thru er of Teeth | Dim | ensions (in | ch) | WT (lbs) | Max. | Depth (inch) | of Cut | MPX | Fig. | ||
| S | Cool Numb | DCX | DCON | LF | LH | B2 | APMX | A1 | AZ | R | ||||
| dard | ARP5UPR1603FA16M | a | Y 3 | 1.000 | 1.000 | 5.500 | 2.250 | 1.17° | .948 | .197 | .039 | .018 | 1.9° | 1 |
| .197" Stan | ARP5UPR2004FA20M | a | Y 4 | 1.250 | 1.250 | 6.000 | 2.750 | 0.76° | 1.676 | .197 | .039 | .026 | 1.9° | 1 |
| 5mm ng | ARP5UPR1602SA16L | a | Y 2 | 1.000 | 1.000 | 7.000 | 3.000 | 0.57° | 1.257 | .197 | .039 | .018 | 1.9° | 3 |
| Lo | ARP5UPR2003SA20L | a | Y 3 | 1.250 | 1.250 | 8.000 | 4.750 | 1.01° | 2.227 | .197 | .039 | .026 | 1.9° | 3 |
| rd | ARP6UPR2003FA20M | a | Y 3 | 1.250 | 1.250 | 6.000 | 2.750 | 0.95° | 1.653 | .236 | .039 | .024 | 2.0° | 1 |
| anda | ARP6UPR2404FA20M | a | Y 4 | 1.500 | 1.250 | 6.000 | 2.000 | ─ | 1.830 | .236 | .098 | .041 | 2.7° | 2 |
| .236" St | ARP6UPR3205FA24M | a | Y 5 | 2.000 | 1.500 | 6.000 | 2.000 | ─ | 2.734 | .236 | .098 | .067 | 2.8° | 2 |
| 6mm | ARP6UPR2002SA20L | a | Y 2 | 1.250 | 1.250 | 8.000 | 4.750 | 0.51° | 2.205 | .236 | .039 | .024 | 2.0° | 3 |
| Long | ARP6UPR2403SA20L | a | Y 3 | 1.500 | 1.250 | 10.000 | 2.000 | ─ | 3.219 | .236 | .098 | .041 | 2.7° | 4 |
| ARP6UPR3204SA24L | a | Y 4 | 2.000 | 1.500 | 10.000 | 2.000 | ─ | 4.696 | .236 | .098 | .067 | 2.8° | 4 |
*1 Y=Yes, N=No
RMPX = Max. Ramping Angle
SPARE PARTS
L
Tool Holder Type
| Insert Screw | Wrench | Anti-seize Lubricant | Insert | |||||
| ARP5 | TPS351B | TIP10D | MK1KS | RPoT1040M0oo-o | ||||
| ARP6 | TPS4 | TIP15D | MK1KS | RPoT1248M0oo-o | ||||
| * Clamp Torque (lbf-in) : TPS351B = 22, TPS4 = 31 |
<140 PSI ←Standard→ >720 PSI >1000 PSI
( <5.3 gal/min) (140 PSI-720 PSI) (>7.9 gal/min) ( >13.2 gal/min)
Nozzle Dia. ø.024" ø.031" ø.047" ø.063"
Order Number HSD04004H06 HSD04004H08 HSD04004H12 HSD04004H16
Select and use alternate nozzles from below list depending on coolant pressure. Clamp Torque (lbf-in) : HSD0400Hpp= 13 The part number for a plug screw without a through nozzle is HSS04004.
