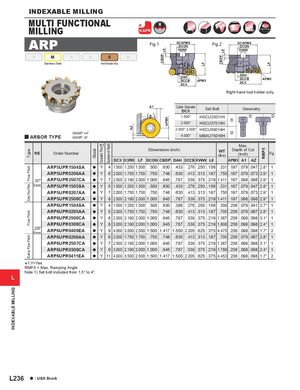

Общий каталог Mitsubishi 2020 - 2021 - страница 1411
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
ARP
P M K N S
Stainless Steel Heat Resistant Alloy
H
Fig.1
DCSFMS Fig.2 DCSFMS
DCON DCON KWW KWW
DAH DAH
DCCB APMX DCCB APMX
DCX DCX Right hand tool holder only.
| y ARBO | GAMP :+4° GAMF :-6° R TYPE | AZ | A1 | APMX | 1. 2. 2.500 4. Cutter D | 500" 000" ",3.000" 000" Diameter CX | HS HSC HSC MB S | CU25 U37 U50 AU75 et Bo | 011H 513H 014H 016H lt | z x | z Geomet | ry | x | ||||
| RE Type | Order Number | Stock | 1 lant Thru | ber of Teeth | Dime | nsions ( | inch) | WT (lbs) | Dep ( | Max. th of Cut inch) | RMPX | Fig. | |||||
| Coo | Num | DCX | DCSFMS LF | DCON | CBDP | DAH | DCCB | KWW | L8 | APMX | A1 AZ | ||||||
| tch | ARP5UPR1504SA | a | Y | 4 | 1.500 | 1.250 1.500 | .500 | .630 | .433 | .276 | .250 | .156 | .331 | .197 | .079 .047 | 2.8° | 1 |
| e Pi | ARP5UPR0206AA | a | Y | 6 | 2.000 | 1.750 1.750 | .750 | .748 | .630 | .413 | .313 | .187 | .750 | .197 | .079 .073 | 2.9° | 1 |
| .197" Fin | ARP5UPR2507CA | a | Y | 7 | 2.500 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.411 | .197 | .098 .098 | 2.9° | 1 |
| 5mm Pitch | ARP5UPR1505SA | a | Y | 5 | 1.500 | 1.250 1.500 | .500 | .630 | .433 | .276 | .250 | .156 | .331 | .197 | .079 .047 | 2.8° | 1 |
| Fine | ARP5UPR0207AA | a | Y | 7 | 2.000 | 1.750 1.750 | .750 | .748 | .630 | .413 | .313 | .187 | .750 | .197 | .079 .073 | 2.9° | 1 |
| Extra | ARP5UPR2508CA | a | Y | 8 | 2.500 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.411 | .197 | .098 .098 | 2.9° | 1 |
| ARP6UPR1504SA | a | Y | 4 | 1.500 | 1.250 1.500 | .500 | .630 | .386 | .276 | .250 | .156 | .309 | .236 | .079 .041 | 2.7° | 1 | |
| tch | ARP6UPR0205AA | a | Y | 5 | 2.000 | 1.750 1.750 | .750 | .748 | .630 | .413 | .313 | .187 | .705 | .236 | .079 .067 | 2.8° | 1 |
| e Pi | ARP6UPR2506CA | a | Y | 6 | 2.500 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.367 | .236 | .098 .098 | 3.1° | 1 |
| Fin | ARP6UPR0308CA | a | Y | 8 | 3.000 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.808 | .236 | .098 .098 | 2.4° | 1 |
| .236" 6mm | ARP6UPR0409EA | a | Y | 9 | 4.000 | 3.500 2.500 | 1.500 | 1.417 | 1.500 | 2.205 | .625 | .375 | 4.475 | .236 | .098 .098 | 1.7° | 2 |
| itch | ARP6UPR0206AA | a | Y | 6 | 2.000 | 1.750 1.750 | .750 | .748 | .630 | .413 | .313 | .187 | .705 | .236 | .079 .067 | 2.8° | 1 |
| ne P | ARP6UPR2507CA | a | Y | 7 | 2.500 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.367 | .236 | .098 .098 | 3.1° | 1 |
| a Fi | ARP6UPR0309CA | a | Y | 9 | 3.000 | 2.190 2.000 | 1.000 | .945 | .787 | .539 | .375 | .219 | 1.786 | .236 | .098 .098 | 2.4° | 1 |
| Extr | ARP6UPR0411EA | a | Y | 11 | 4.000 | 3.500 2.500 | 1.500 | 1.417 | 1.500 | 2.205 | .625 | .375 | 4.453 | .236 | .098 .098 | 1.7° | 2 |
*1 Y=Yes
RMPX = Max. Ramping Angle Note 1) Set bolt included from 1.5" to 4".
