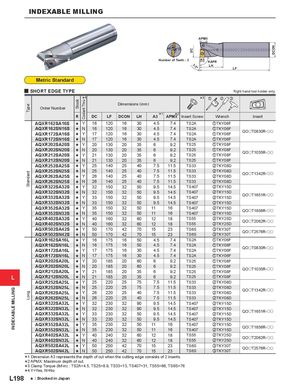

INDEXABLE MILLING APMX DCON DC Number of Teeth : 2 A3 KAPR LH 3. LF 5° Metric Standard y SHORT EDGE TYPE Right hand tool holder only. * 4 * 3 z x c Stock Coolant Thru Dimensions (mm) Type Order Number A3 * * Insert Screw 1 2 R DC LF DCON LH APMX Wrench Insert AQXR162SA16S s Y 16 120 16 30 4.5 7.4 TS2A zTKY06F AQXR162SN16S s N 16 120 16 30 4.5 7.4 TS2A zTKY06F QOoT0830R-oo AQXR172SA16S s Y 17 120 16 30 4.5 7.4 TS2A zTKY06F AQXR172SN16S s N 17 120 16 30 4.5 7.4 TS2A zTKY06F AQXR202SA20S s Y 20 130 20 35 6 9.2 TS25 zTKY08F AQXR202SN20S s N 20 130 20 35 6 9.2 TS25 zTKY08F QOoT1035R-oo AQXR212SA20S s Y 21 130 20 35 6 9.2 TS25 zTKY08F AQXR212SN20S s N 21 130 20 35 6 9.2 TS25 zTKY08F AQXR252SA25S s Y 25 140 25 40 7.5 11.5 TS33 xTKY08D AQXR252SN25S s N 25 140 25 40 7.5 11.5 TS33 xTKY08D Standard QOoT1342R-oo AQXR262SA25S s Y 26 140 25 40 7.5 11.5 TS33 xTKY08D AQXR262SN25S s N 26 140 25 40 7.5 11.5 TS33 xTKY08D AQXR322SA32S s Y 32 150 32 50 9.5 14.5 TS407 xTKY15D AQXR322SN32S s N 32 150 32 50 9.5 14.5 TS407 xTKY15D QOoT1651R-oo AQXR332SA32S s Y 33 150 32 50 9.5 14.5 TS407 xTKY15D AQXR332SN32S s N 33 150 32 50 9.5 14.5 TS407 xTKY15D AQXR352SA32S s Y 35 150 32 50 11 16 TS407 xTKY15D QOoT1856R-oo AQXR352SN32S s N 35 150 32 50 11 16 TS407 xTKY15D AQXR402SA32S s Y 40 160 32 60 12 18 TS55 xTKY25D QOoT2062R-oo AQXR402SN32S s N 40 160 32 60 12 18 TS55 xTKY25D AQXR502SA42S s Y 50 170 42 70 15 23 TS6S cTKY30T QOoT2576R-oo AQXR502SN42S s N 50 170 42 70 15 23 TS6S cTKY30T AQXR162SA16L s Y 16 175 16 50 4.5 7.4 TS2A zTKY06F AQXR162SN16L s N 16 175 16 50 4.5 7.4 TS2A zTKY06F QOoT0830R-oo AQXR172SA16L s Y 17 175 16 30 4.5 7.4 TS2A zTKY06F AQXR172SN16L s N 17 175 16 30 4.5 7.4 TS2A zTKY06F AQXR202SA20L s Y 20 185 20 60 6 9.2 TS25 zTKY08F AQXR202SN20L s N 20 185 20 60 6 9.2 TS25 zTKY08F QOoT1035R-oo AQXR212SA20L s Y 21 185 20 35 6 9.2 TS25 zTKY08F L AQXR212SN20L s N 21 185 20 35 6 9.2 TS25 zTKY08F AQXR252SA25L s Y 25 220 25 75 7.5 11.5 TS33 xTKY08D AQXR252SN25L s N 25 220 25 75 7.5 11.5 TS33 xTKY08D INDEXABLE MILLING QOoT1342R-oo AQXR262SA25L s Y 26 220 25 40 7.5 11.5 TS33 xTKY08D Long AQXR262SN25L s N 26 220 25 40 7.5 11.5 TS33 xTKY08D AQXR322SA32L s Y 32 230 32 90 9.5 14.5 TS407 xTKY15D AQXR322SN32L s N 32 230 32 90 9.5 14.5 TS407 xTKY15D QOoT1651R-oo AQXR332SA32L s Y 33 230 32 50 9.5 14.5 TS407 xTKY15D AQXR332SN32L s N 33 230 32 50 9.5 14.5 TS407 xTKY15D AQXR352SA32L s Y 35 230 32 50 11 16 TS407 xTKY15D QOoT1856R-oo AQXR352SN32L s N 35 230 32 50 11 16 TS407 xTKY15D AQXR402SA32L s Y 40 240 32 60 12 18 TS55 xTKY25D QOoT2062R-oo AQXR402SN32L s N 40 240 32 60 12 18 TS55 xTKY25D AQXR502SA42L s Y 50 250 42 70 15 23 TS6S cTKY30T QOoT2576R-oo AQXR502SN42L s N 50 250 42 70 15 23 TS6S cTKY30T *12 APMX: Dimension A3 represents the depth of cut when the cutting edge consists of 2 inserts. *3 Clamp Torque Maximum depth of cut. *4 Y=Yes, N=No (lbf-in) : TS2A=4.5, TS25=8.9, TS33=13, TS407=31, TS55=66, TS6S=76 * L198 s : Stocked in Japan
