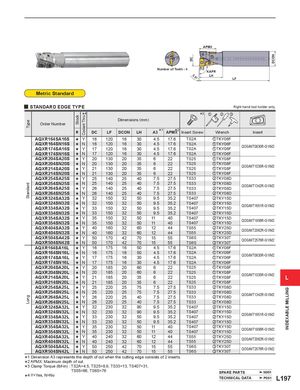

APMX DCON DC Number of Teeth : 4 A3 KAPR LH 3. LF 5° Metric Standard y STANDARD EDGE TYPE Right hand tool holder only. * 4 * 3 z x c Stock Coolant Thru Dimensions (mm) Type Order Number A3 * * Insert Screw 1 2 R DC LF DCON LH APMX Wrench Insert AQXR164SA16S s Y 16 120 16 30 4.5 17.6 TS2A zTKY06F AQXR164SN16S s N 16 120 16 30 4.5 17.6 TS2A zTKY06F QOG/MT0830R-G1/M2 AQXR174SA16S s Y 17 120 16 30 4.5 17.6 TS2A zTKY06F AQXR174SN16S s N 17 120 16 30 4.5 17.6 TS2A zTKY06F AQXR204SA20S s Y 20 130 20 35 6 22 TS25 zTKY08F AQXR204SN20S s N 20 130 20 35 6 22 TS25 zTKY08F QOG/MT1035R-G1/M2 AQXR214SA20S s Y 21 130 20 35 6 22 TS25 zTKY08F AQXR214SN20S s N 21 130 20 35 6 22 TS25 zTKY08F AQXR254SA25S s Y 25 140 25 40 7.5 27.5 TS33 xTKY08D AQXR254SN25S s N 25 140 25 40 7.5 27.5 TS33 xTKY08D Standard QOG/MT1342R-G1/M2 AQXR264SA25S s Y 26 140 25 40 7.5 27.5 TS33 xTKY08D AQXR264SN25S s N 26 140 25 40 7.5 27.5 TS33 xTKY08D AQXR324SA32S s Y 32 150 32 50 9.5 35.2 TS407 xTKY15D AQXR324SN32S s N 32 150 32 50 9.5 35.2 TS407 xTKY15D QOG/MT1651R-G1/M2 AQXR334SA32S s Y 33 150 32 50 9.5 35.2 TS407 xTKY15D AQXR334SN32S s N 33 150 32 50 9.5 35.2 TS407 xTKY15D AQXR354SA32S s Y 35 150 32 50 11 40 TS407 xTKY15D QOG/MT1856R-G1/M2 AQXR354SN32S s N 35 150 32 50 11 40 TS407 xTKY15D AQXR404SA32S s Y 40 160 32 60 12 44 TS55 xTKY25D QOG/MT2062R-G1/M2 AQXR404SN32S s N 40 160 32 60 12 44 TS55 xTKY25D AQXR504SA42S s Y 50 170 42 70 15 55 TS6S cTKY30T QOG/MT2576R-G1/M2 AQXR504SN42S s N 50 170 42 70 15 55 TS6S cTKY30T AQXR164SA16L s Y 16 175 16 50 4.5 17.6 TS2A zTKY06F AQXR164SN16L s N 16 175 16 50 4.5 17.6 TS2A zTKY06F QOG/MT0830R-G1/M2 AQXR174SA16L s Y 17 175 16 30 4.5 17.6 TS2A zTKY06F AQXR174SN16L s N 17 175 16 30 4.5 17.6 TS2A zTKY06F AQXR204SA20L s Y 20 185 20 60 6 22 TS25 zTKY08F AQXR204SN20L s N 20 185 20 60 6 22 TS25 zTKY08F QOG/MT1035R-G1/M2 AQXR214SA20L s Y 21 185 20 35 6 22 TS25 zTKY08F L AQXR214SN20L s N 21 185 20 35 6 22 TS25 zTKY08F AQXR254SA25L s Y 25 220 25 75 7.5 27.5 TS33 xTKY08D INDEXABLE MILLING AQXR254SN25L s N 25 220 25 75 7.5 27.5 TS33 xTKY08D QOG/MT1342R-G1/M2 AQXR264SA25L Y 26 220 25 40 7.5 27.5 TS33 xTKY08D Long s AQXR264SN25L s N 26 220 25 40 7.5 27.5 TS33 xTKY08D AQXR324SA32L s Y 32 230 32 90 9.5 35.2 TS407 xTKY15D AQXR324SN32L s N 32 230 32 90 9.5 35.2 TS407 xTKY15D QOG/MT1651R-G1/M2 AQXR334SA32L s Y 33 230 32 50 9.5 35.2 TS407 xTKY15D AQXR334SN32L s N 33 230 32 50 9.5 35.2 TS407 xTKY15D AQXR354SA32L s Y 35 230 32 50 11 40 TS407 xTKY15D QOG/MT1856R-G1/M2 AQXR354SN32L s N 35 230 32 50 11 40 TS407 xTKY15D AQXR404SA32L s Y 40 240 32 60 12 44 TS55 xTKY25D QOG/MT2062R-G1/M2 AQXR404SN32L s N 40 240 32 60 12 44 TS55 xTKY25D AQXR504SA42L s Y 50 250 42 70 15 55 TS6S cTKY30T QOG/MT2576R-G1/M2 AQXR504SN42L s N 50 250 42 70 15 55 TS6S cTKY30T *12 APMX: Dimension A3 represents the depth of cut when the cutting edge consists of 2 inserts. *3 Clamp Torque Maximum depth of cut. * (lbf-in) : TS2A=4.5, TS25=8.9, TS33=13, TS407=31, TS55=66, TS6S=76 SPARE PARTS N001 * 4 Y=Yes, N=No TECHNICAL DATA P001 L197
