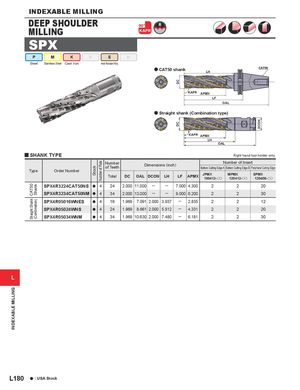

INDEXABLE MILLING DEEP SHOULDER 90° MILLING KAPR SPX P M K N S H Steel Stainless Steel Cast Iron Heat Resistant Alloy a CAT50 shank LH DC KAPR APMX LF OAL a Straight shank (Combination type) DCON DC KAPR APMX LH OAL y SHANK TYPE Right hand tool holder only. Number Number of Insert Number of Flute Dimensions (inch) of Teeth Bottom Cutting Edge A Bottom Cutting Edge B Peripheral Cutting Edge Stock Type Order Number JPMX MPMX SPMX Total DC OAL DCON LH LF APMX 190412- oo 120412- oo 120408- oo SPX4R3224CAT50NS 4 24 2.000 11.000 ─ ─ 7.000 4.300 2 2 20 Straight Shank CAT50 (Combination) Shank a SPX4R3234CAT50NM a 4 34 2.000 13.000 ─ ─ 9.000 6.200 2 2 30 SPX4R05016WNES a 4 16 1.969 7.091 2.000 3.937 ─ 2.835 2 2 12 SPX4R05024WNS a 4 24 1.969 8.661 2.000 5.512 ─ 4.331 2 2 20 SPX4R05034WNM a 4 34 1.969 10.630 2.000 7.480 ─ 6.181 2 2 30 L INDEXABLE MILLING L180 a : USA Stock
