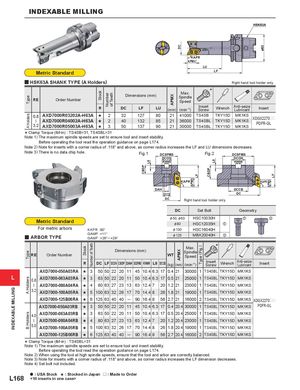

Общий каталог Mitsubishi 2020 - 2021 - страница 1343

Предыдущая страница Следующая страница

Навигация

INDEXABLE MILLING DC KAPR APMX LU LF Metric Standard y HSK63A SHANK TYPE (A Holders) Right hand tool holder only. Max. * Stock Number of Teeth Dimensions (mm) APMX Spindle Type RE Order Number Speed R DC LF LU Insert WrenchAnti-seize Insert (mm) (min-1) Screw Lubricant 0.8 AXD7000R03202A-H63A s 2 32 127 80 21 41000 TS4SB TKY15D MK1KS A Holders XDGX2270pp AXD7000R04002A-H63A s 2 40 132 85 21 36000 TS4SBL TKY15D MK1KS ─ 3.2 AXD7000R05003A-H63A PDFR-GL s 3 50 137 90 21 30000 TS4SBL TKY15D MK1KS * Clamp Torque (lbf-in) : TS4SB=31, TS4SBL=31 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating the tool read the operation guidance on page L174. Note 2) Note for inserts with a corner radius of .118" and above, as corner radius increases the LF and LU dimensions decreases. Note 3) There is no data chip hole. Fig.1 Fig.2 DCSFMS DCSFMS DCON DCON L8 KWW KWW L8 CBDP CBDP LF LF APMX KAPR KAPR APMX DAH DCCB DCCB DC DC Right hand tool holder only. DC Set Bolt Geometry &50, & 63 HSC10030H z x Metric Standard &80 HSC12035H z For metric arbors KAPR :90° &100 HSC16040H GAMP :+11° &125 MBA20040H x y ARBOR TYPE GAMF :+26°─ +29° * Number of Teeth Max. Type (Fig.) Stock Dimensions (mm) APMX Spindle Type RE Order Number WT Speed R DC LF DCON CBDP DAH DCSFMS KWW L8 DCCB (kg) (mm) (min-1) Insert Anti-seize Screw Wrench Lubricant Insert AXD7000-050A03RA s 3 50 50 22 20 11 45 10.4 6.3 17 0.4 21 30000 1 TS4SBL TKY15D MK1KS L 0.8 AXD7000-063A03RA s 3 63 50 22 20 11 50 10.4 6.3 17 0.5 21 25000 1 TS4SBL TKY15D MK1KS A Holders AXD7000-080A04RA s 4 80 63 27 23 13 63 12.4 7 20 1.2 21 23000 1 TS4SBL TKY15D MK1KS ─ INDEXABLE MILLING 3.2 AXD7000-100A05RA s 5 100 63 32 26 17 70 14.4 8 26 1.8 21 19000 1 TS4SBL TKY15D MK1KS AXD7000-125B06RA s 6 125 63 40 40 ─ 90 16.4 9 56 2.7 21 16000 2 TS4SBL TKY15D MK1KS XDGX2270pp AXD7000-050A03RB s 3 50 50 22 20 11 45 10.4 6.3 17 0.4 20.4 30000 1 TS4SBL TKY15D MK1KS PDFR-GL 4.0 AXD7000-063A03RB 3 63 50 22 20 11 50 10.4 6.3 17 0.5 20.4 25000 1 TS4SBL TKY15D MK1KS s B Holders AXD7000-080A04RB s 4 80 63 27 23 13 63 12.4 7 20 1.2 20.4 23000 1 TS4SBL TKY15D MK1KS ─ 5.0 AXD7000-100A05RB s 5 100 63 32 26 17 70 14.4 8 26 1.8 20.4 19000 1 TS4SBL TKY15D MK1KS AXD7000-125B06RB s 6 125 63 40 40 ─ 90 16.4 9 56 2.7 20.4 16000 2 TS4SBL TKY15D MK1KS * Clamp Torque (lbf-in) : TS4SBL=31 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating the tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) Note for inserts with a corner radius of .118" and above, as corner radius increases the LF dimension decreases. Note 4) Set bolt not included. a : USA Stock s : Stocked in Japan r : Made to Order L168 <10 inserts in one case>
