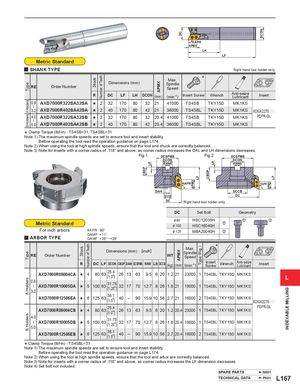

DCON DC KAPR APMX LH LF Metric Standard y SHANK TYPE Right hand tool holder only. * Number of Teeth Max. Stock Dimensions (mm) APMX Spindle Type RE Order Number Speed R DC LF LH DCON (mm) Insert Screw Wrench Anti-seize Insert (min-1) Lubricant 0.8 AXD7000R322SA32SA B Holders A Holders s 2 32 170 80 32 21 41000 TS4SB TKY15D MK1KS ─ 3.2 AXD7000R402SA42SA s 2 40 170 80 42 21 36000 TS4SBL TKY15D MK1KS XDGX2270pp 4.0 AXD7000R322SA32SB s 2 32 170 80 32 20.4 41000 TS4SB TKY15D MK1KS PDFR-GL ─ 5.0 AXD7000R402SA42SB s 2 40 170 80 42 20.4 36000 TS4SBL TKY15D MK1KS * Clamp Torque (lbf-in) : TS4SB=31, TS4SBL=31 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating the tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and chuck are correctly balanced. Note 3) Note for inserts with a corner radius of .118" and above, as corner radius increases the OAL and LH dimensions decreases. Fig.1 DCSFMS Fig.2 DCSFMS DCON DCON L8 KWW KWW L8 CBDP CBDP LF LF APMX KAPR KAPR APMX DAH DCCB DCCB DC DC Right hand tool holder only. DC Set Bolt Geometry &80 HSC12035H z x Metric Standard &100 HSC16040H z For inch arbors KAPR :90° &125 MBA20040H x GAMP :+11° y ARBOR TYPE GAMF :+26°─+29° * Number of Teeth Max. Type (Fig.) Stock Dimensions (mm) [inch] APMX Spindle Type RE Order Number WT Speed R DC LF DCON CBDP DAH DCSFMS KWW L8 DCCB (kg) (mm) (min-1) Insert Anti-seize Screw Wrench Lubricant Insert 25.4 AXD7000R08004CA s 4 80 63 [ "] 26 13 63 9.5 6 20 1.2 21 23000 1 TS4SBL TKY15D MK1KS 1.0 L A Holders 0.8 31.75 AXD7000R10005DA s 5 100 63 [ "] 32 17 70 12.7 8 26 1.8 21 19000 1 TS4SBL TKY15D MK1KS ─ 1.25 INDEXABLE MILLING 3.2 38.1 AXD7000R12506EA s 6 125 63 [ "] 40 – 90 15.9 10 56 2.7 21 16000 2 TS4SBL TKY15D MK1KS 1.5 XDGX2270pp 25.4 PDFR-GL AXD7000R08004CB s 4 80 63 [ "] 26 13 63 9.5 6 20 1.2 20.4 23000 1 TS4SBL TKY15D MK1KS 1.0 B Holders 4.0 31.75 AXD7000R10005DB s 5 100 63 [ "] 32 17 70 12.7 8 26 1.8 20.4 19000 1 TS4SBL TKY15D MK1KS ─ 1.25 5.0 38.1 AXD7000R12506EB s 6 125 63 [ "] 40 – 90 15.9 10 56 2.7 20.4 16000 2 TS4SBL TKY15D MK1KS 1.5 * Clamp Torque (lbf-in) : TS4SBL=31 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating the tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) Note for inserts with a corner radius of .118" and above, as corner radius increases the LF dimension decreases. Note 4) Set bolt not included. SPARE PARTS N001 TECHNICAL DATA P001 L167
