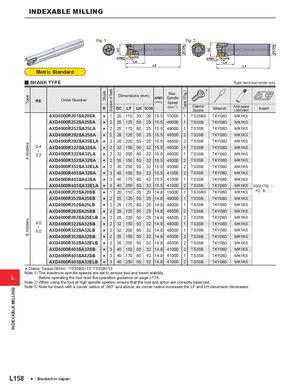

Общий каталог Mitsubishi 2020 - 2021 - страница 1333
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
| Fi | g. 1 | F | ig. 2 | ||||||||||||
| DC | DCON | DC | DCON | ||||||||||||
| MET Met | RIC Standard ric Standard | APM | X K | LH PR | LF | LH APMX KAPR | LF | ||||||||
| y S | HAN | K TYPE | Right hand | tool holder only. | |||||||||||
| k | eth | .) | |||||||||||||
| Type | RE | Order Number | Stoc | ber of Te | Di | mensi | ons (m | m) | APMX (mm) | Max. Spindle Speed | pe(Fig | ||||
| R | Num | DC | LF | LH | DCON | (min-1) | Ty | Clamp Screw | Wrench | Anti-seize Lubricant | Insert | ||||
| AXD4000R201SA20SA | s | 1 | 20 | 110 | 35 | 20 | 15.5 | 15000 | 1 | TS3SBS | TKY08D | MK1KS | |||
| AXD4000R252SA25SA | s | 2 | 25 | 125 | 50 | 25 | 15.5 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R252SA25LA | s | 2 | 25 | 170 | 80 | 25 | 15.5 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R282SA25SA | s | 2 | 28 | 125 | 50 | 25 | 15.5 | 48500 | 2 | TS3SB | TKY08D | MK1KS | |||
| s | AXD4000R282SA25ELA | s | 2 | 28 | 220 | 50 | 25 | 15.5 | 48500 | 2 | TS3SB | TKY08D | MK1KS | ||
| lder | 0.4 | AXD4000R322SA32SA | s | 2 | 32 | 150 | 50 | 32 | 15.5 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| Ho | ─ 3.2 | AXD4000R322SA32LA | s | 2 | 32 | 200 | 80 | 32 | 15.5 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| A | AXD4000R352SA32SA | s | 2 | 35 | 150 | 50 | 32 | 15.5 | 45000 | 2 | TS3SB | TKY08D | MK1KS | ||
| AXD4000R352SA32ELA | s | 2 | 35 | 250 | 50 | 32 | 15.5 | 45000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA32SA | s | 3 | 40 | 150 | 50 | 32 | 15.5 | 41000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA42SA | s | 3 | 40 | 170 | 80 | 42 | 15.5 | 41000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA32ELA | s | 3 | 40 | 250 | 50 | 32 | 15.5 | 41000 | 2 | TS3SB | TKY08D | MK1KS | XDGX1750pp | ||
| AXD4000R201SA20SB | s | 1 | 20 | 110 | 35 | 20 | 14.8 | 15000 | 1 | TS3SBS | TKY08D | MK1KS | PDpR-pp | ||
| AXD4000R252SA25SB | s | 2 | 25 | 125 | 50 | 25 | 14.8 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R252SA25LB | s | 2 | 25 | 170 | 80 | 25 | 14.8 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R282SA25SB | s | 2 | 28 | 125 | 50 | 25 | 14.8 | 48500 | 2 | TS3SB | TKY08D | MK1KS | |||
| s | AXD4000R282SA25ELB | s | 2 | 28 | 220 | 50 | 25 | 14.8 | 48500 | 2 | TS3SB | TKY08D | MK1KS | ||
| der | 4.0 | AXD4000R322SA32SB | s | 2 | 32 | 150 | 50 | 32 | 14.8 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| Hol | ─ 50 | AXD4000R322SA32LB | s | 2 | 32 | 200 | 80 | 32 | 14.8 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| B | . | AXD4000R352SA32SB | s | 2 | 35 | 150 | 50 | 32 | 14.8 | 45000 | 2 | TS3SB | TKY08D | MK1KS | |
| AXD4000R352SA32ELB | s | 2 | 35 | 250 | 50 | 32 | 14.8 | 45000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA32SB | s | 3 | 40 | 150 | 50 | 32 | 14.8 | 41000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA42SB | s | 3 | 40 | 170 | 80 | 42 | 14.8 | 41000 | 1 | TS3SB | TKY08D | MK1KS | |||
| AXD4000R403SA32ELB | s | 3 | 40 | 250 | 50 | 32 | 14.8 | 41000 | 2 | TS3SB | TKY08D | MK1KS |
Clamp Torque (lbf-in) : TS3SBS=13, TS3SB=13 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. L Before operating the tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) Note for insert with a corner radius of .063" and above, as corner radius increases the LF and LH dimension decreases.
