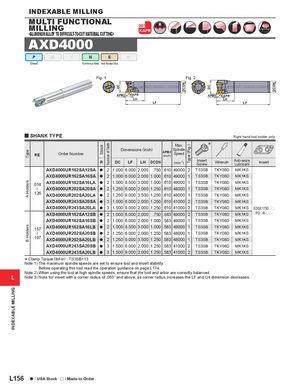

<ALUMINUM ALLOY TO DIFFICULT-TO-CUT MATERIAL CUTTING> KAPR
AXD4000
P M K N S H
Steel Non-ferrous Metal Heat Resistant Alloy Fig. 1 Fig. 2
APMX KAPR APMX KAPR
LH LH LF LF
y SHANK TYPE
Right hand tool holder only.
| Type | RE | Order Number | Stock ber of Teeth | Di | mensions (inc | h) | APMX (inch) | Max. Spindle Speed | pe(Fig.) | ||||
| y | Insert | Anti-seize | |||||||||||
| R N | DC | LF LH | DCON | (min-1) | T | Screw | Wrench | Lubricant | Insert | ||||
| AXD4000UR162SA12SA | a 2 | 1.000 | 6.000 2.000 | .750 | .610 | 49000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000UR162SA16SA | a 2 | 1.000 | 6.000 2.000 | 1.000 | .610 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| ers | .016 | AXD4000UR162SA16LA | a 2 | 1.000 | 8.500 3.000 | 1.000 | .610 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |
| old | ─ | AXD4000UR202SA20SA | a 2 | 1.250 | 6.000 2.000 | 1.250 | .610 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| A | .126 | AXD4000UR202SA20LA | a 2 | 1.250 | 9.000 3.500 | 1.250 | .610 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| AXD4000UR243SA20SA | a 3 | 1.500 | 6.000 2.000 | 1.250 | .610 | 41000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000UR243SA20LA | a 3 | 1.500 | 9.000 2.000 | 1.250 | .610 | 41000 | 2 | TS3SB | TKY08D | MK1KS | XDGX1750pp | ||
| AXD4000UR162SA12SB | a 2 | 1.000 | 6.000 2.000 | .750 | .583 | 49000 | 2 | TS3SB | TKY08D | MK1KS | PDpR-pp | ||
| AXD4000UR162SA16SB | a 2 | 1.000 | 6.000 2.000 | 1.000 | .583 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |||
| ers | .157 | AXD4000UR162SA16LB | a 2 | 1.000 | 8.500 3.000 | 1.000 | .583 | 49000 | 1 | TS3SB | TKY08D | MK1KS | |
| old | ─ | AXD4000UR202SA20SB | a 2 | 1.250 | 6.000 2.000 | 1.250 | .583 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| B | .197 | AXD4000UR202SA20LB | a 2 | 1.250 | 9.000 3.500 | 1.250 | .583 | 48000 | 1 | TS3SB | TKY08D | MK1KS | |
| AXD4000UR243SA20SB | a 3 | 1.500 | 6.000 2.000 | 1.250 | .583 | 41000 | 2 | TS3SB | TKY08D | MK1KS | |||
| AXD4000UR243SA20LB | a 3 | 1.500 | 9.000 2.000 | 1.250 | .583 | 41000 | 2 | TS3SB | TKY08D | MK1KS |
Clamp Torque (lbf-in) : TS3SB=13 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating this tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. L Note 3) Note for insert with a corner radius of .063" and above, as corner radius increases the LF and LH dimension decreases.
