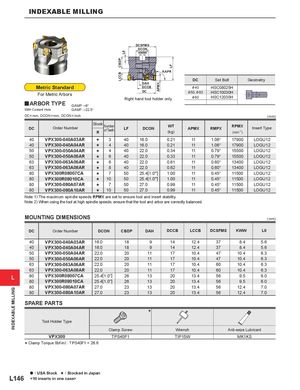

INDEXABLE MILLING DCSFMS DCON KWW L8 CBDP LF KAPR LCCB DC Set Bolt Geometry DAH APMX Metric Standard DCCB &40 HSC08025H DC &50, &63 HSC10030H For Metric Arbors Right hand tool holder only. &80 HSC12035H y ARBOR TYPE GAMP : ‒6° With Coolant Hole GAMF : ‒22.5° DC = mm, DCON = mm, DCON = Inch ( mm) Stock Number WT RPMX DC Order Number LF DCON APMX RMPX Insert Type of Teeth (kg) R (min-1) 40 VPX300-040A03AR s 3 40 16.0 0.21 11 1.06° 17900 LOGU12 40 VPX300-040A04AR s 4 40 16.0 0.21 11 1.06° 17900 LOGU12 50 VPX300-050A04AR s 4 40 22.0 0.34 11 0.79° 15500 LOGU12 50 VPX300-050A06AR s 6 40 22.0 0.33 11 0.79° 15500 LOGU12 63 VPX300-063A06AR s 6 40 22.0 0.61 11 0.60° 13400 LOGU12 63 VPX300-063A08AR s 8 40 22.0 0.62 11 0.60° 13400 LOGU12 80 VPX300R08007CA s 7 50 25.4[1.0"] 1.00 11 0.45° 11500 LOGU12 80 VPX300R08010CA s 10 50 25.4[1.0"] 1.00 11 0.45° 11500 LOGU12 80 VPX300-080A07AR s 7 50 27.0 0.99 11 0.45° 11500 LOGU12 80 VPX300-080A10AR s 10 50 27.0 0.99 11 0.45° 11500 LOGU12 Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. MOUNTING DIMENSIONS ( mm) DC Order Number DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 40 VPX300-040A03AR 16.0 18 9 14 12.4 37 8.4 5.6 40 VPX300-040A04AR 16.0 18 9 14 12.4 37 8.4 5.6 50 VPX300-050A04AR 22.0 20 11 17 10.4 47 10.4 6.3 50 VPX300-050A06AR 22.0 20 11 17 10.4 47 10.4 6.3 63 VPX300-063A06AR 22.0 20 11 17 10.4 60 10.4 6.3 63 VPX300-063A08AR 22.0 20 11 17 10.4 60 10.4 6.3 80 VPX300R08007CA 25.4[1.0"] 26 13 20 13.4 56 9.5 6.0 L 80 VPX300R08010CA 25.4[1.0"] 26 13 20 13.4 56 9.5 6.0 80 VPX300-080A07AR 27.0 23 13 20 13.4 56 12.4 7.0 INDEXABLE MILLING 80 VPX300-080A10AR 27.0 23 13 20 13.4 56 12.4 7.0 SPARE PARTS * Tool Holder Type Clamp Screw Wrench Anti-seize Lubricant VPX300 TPS40F1 TIP15W MK1KS * Clamp Torque (lbf-in) : TPS40F1 = 26.6 a : USA Stock s : Stocked in Japan L146 <10 inserts in one case>
