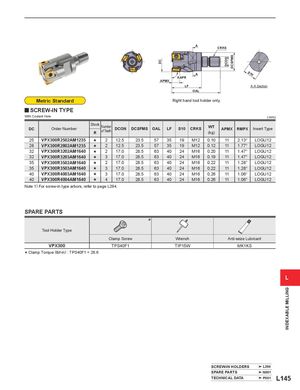

Общий каталог Mitsubishi 2020 - 2021 - страница 1320
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
A CRKS
S10 A KAPR APMX LF A-A Section OAL Metric Standard Right hand tool holder only.
y SCREW-IN TYPE
With Coolant Hole (mm)
| DC | Order Number | R Stock | Number of Teeth | DCON | DCSFMS | OAL | LF | S10 | CRKS | WT (kg) | APMX | RMPX | Insert Type |
| 25 | VPX300R2502AM1235 | s | 2 | 12.5 | 23.5 | 57 | 35 | 19 | M12 | 0.10 | 11 | 2.13° | LOGU12 |
| 28 | VPX300R2802AM1235 | s | 2 | 12.5 | 23.5 | 57 | 35 | 19 | M12 | 0.12 | 11 | 1.77° | LOGU12 |
| 32 | VPX300R3202AM1640 | s | 2 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.20 | 11 | 1.47° | LOGU12 |
| 32 | VPX300R3203AM1640 | s | 3 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.19 | 11 | 1.47° | LOGU12 |
| 35 | VPX300R3502AM1640 | s | 2 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.22 | 11 | 1.28° | LOGU12 |
| 35 | VPX300R3503AM1640 | s | 3 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.22 | 11 | 1.28° | LOGU12 |
| 40 | VPX300R4003AM1640 | s | 3 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.26 | 11 | 1.06° | LOGU12 |
| 40 | VPX300R4004AM1640 | s | 4 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.26 | 11 | 1.06° | LOGU12 |
Note 1) For screw-in type arbors, refer to page L294.
SPARE PARTS
| Tool Holder Type | |||
| Clamp Screw | Wrench | Anti-seize Lubricant | |
| VPX300 | TPS40F1 | TIP15W | MK1KS |
