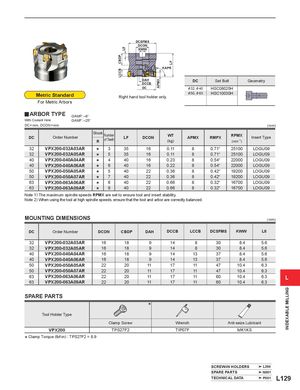

DCSFMS DCON KWW
Metric Standard
For Metric Arbors
y ARBOR TYPE
GAMP :‒6° With Coolant Hole GAMF :‒25°
KAPR
| DAH | DC | Set Bolt | Geometry |
| DCCB |
DC & 32, & 40 HSC08025H
& 50, & 63 HSC10030H Right hand tool holder only.
| DC =mm, | Order Number DCON=mm | R Stock | Number of Teeth | LF | DCON | WT (kg) | APMX | RMPX | RPMX (min-1) | (mm) Insert Type |
| 32 | VPX200-032A03AR | s | 3 | 35 | 16 | 0.11 | 8 | 0.71° | 25100 | LOGU09 |
| 32 | VPX200-032A05AR | s | 5 | 35 | 16 | 0.11 | 8 | 0.71° | 25100 | LOGU09 |
| 40 | VPX200-040A04AR | s | 4 | 40 | 16 | 0.23 | 8 | 0.54° | 22000 | LOGU09 |
| 40 | VPX200-040A06AR | s | 6 | 40 | 16 | 0.22 | 8 | 0.54° | 22000 | LOGU09 |
| 50 | VPX200-050A05AR | s | 5 | 40 | 22 | 0.36 | 8 | 0.42° | 19200 | LOGU09 |
| 50 | VPX200-050A07AR | s | 7 | 40 | 22 | 0.36 | 8 | 0.42° | 19200 | LOGU09 |
| 63 | VPX200-063A06AR | s | 6 | 40 | 22 | 0.66 | 8 | 0.32° | 16700 | LOGU09 |
| 63 | VPX200-063A09AR | s | 9 | 40 | 22 | 0.66 | 8 | 0.32° | 16700 | LOGU09 |
Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced.
| (mm) | |||||||||
| DC | Order Number | DCON | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 |
| 32 | VPX200-032A03AR | 16 | 18 | 9 | 14 | 8 | 30 | 8.4 | 5.6 |
| 32 | VPX200-032A05AR | 16 | 18 | 9 | 14 | 8 | 30 | 8.4 | 5.6 |
| 40 | VPX200-040A04AR | 16 | 18 | 9 | 14 | 13 | 37 | 8.4 | 5.6 |
| 40 | VPX200-040A06AR | 16 | 18 | 9 | 14 | 13 | 37 | 8.4 | 5.6 |
| 50 | VPX200-050A05AR | 22 | 20 | 11 | 17 | 11 | 47 | 10.4 | 6.3 |
| 50 | VPX200-050A07AR | 22 | 20 | 11 | 17 | 11 | 47 | 10.4 | 6.3 |
| 63 | VPX200-063A06AR | 22 | 20 | 11 | 17 | 11 | 60 | 10.4 | 6.3 |
| 63 | VPX200-063A09AR | 22 | 20 | 11 | 17 | 11 | 60 | 10.4 | 6.3 |
SPARE PARTS
| Tool Holder Type | |||
| Clamp Screw | Wrench | Anti-seize Lubricant | |
| VPX200 | TPS27F2 | TIP07F | MK1KS |
