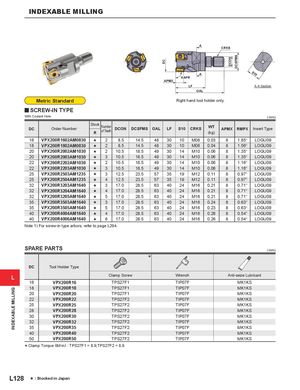

Общий каталог Mitsubishi 2020 - 2021 - страница 1303
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
A CRKS
S10 A KAPR APMX LF A-A Section OAL Metric Standard Right hand tool holder only.
y SCREW-IN TYPE
With Coolant Hole (mm)
| DC | Order Number | R Stock | Number of Teeth | DCON | DCSFMS | OAL | LF | S10 | CRKS | WT (kg) | APMX | RMPX | Insert Type |
| 16 | VPX200R1602AM0830 | s | 2 | 8.5 | 14.5 | 48 | 30 | 10 | M08 | 0.03 | 8 | 1.85° | LOGU09 |
| 18 | VPX200R1802AM0830 | s | 2 | 8.5 | 14.5 | 48 | 30 | 10 | M08 | 0.04 | 8 | 1.56° | LOGU09 |
| 20 | VPX200R2002AM1030 | s | 2 | 10.5 | 18.5 | 49 | 30 | 14 | M10 | 0.06 | 8 | 1.35° | LOGU09 |
| 20 | VPX200R2003AM1030 | s | 3 | 10.5 | 18.5 | 49 | 30 | 14 | M10 | 0.06 | 8 | 1.35° | LOGU09 |
| 22 | VPX200R2202AM1030 | s | 2 | 10.5 | 18.5 | 49 | 30 | 14 | M10 | 0.06 | 8 | 1.16° | LOGU09 |
| 22 | VPX200R2203AM1030 | s | 3 | 10.5 | 18.5 | 49 | 30 | 14 | M10 | 0.06 | 8 | 1.16° | LOGU09 |
| 25 | VPX200R2503AM1235 | s | 3 | 12.5 | 23.5 | 57 | 35 | 19 | M12 | 0.11 | 8 | 0.97° | LOGU09 |
| 25 | VPX200R2504AM1235 | s | 4 | 12.5 | 23.5 | 57 | 35 | 19 | M12 | 0.11 | 8 | 0.97° | LOGU09 |
| 32 | VPX200R3203AM1640 | s | 3 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.21 | 8 | 0.71° | LOGU09 |
| 32 | VPX200R3204AM1640 | s | 4 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.21 | 8 | 0.71° | LOGU09 |
| 32 | VPX200R3205AM1640 | s | 5 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.21 | 8 | 0.71° | LOGU09 |
| 35 | VPX200R3503AM1640 | s | 3 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.24 | 8 | 0.63° | LOGU09 |
| 35 | VPX200R3505AM1640 | s | 5 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.23 | 8 | 0.63° | LOGU09 |
| 40 | VPX200R4004AM1640 | s | 4 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.26 | 8 | 0.54° | LOGU09 |
| 40 | VPX200R4006AM1640 | s | 6 | 17.0 | 28.5 | 63 | 40 | 24 | M16 | 0.26 | 8 | 0.54° | LOGU09 |
Note 1) For screw-in type arbors, refer to page L294.
| (mm) | ||||
| DC | Tool Holder Type | |||
| Clamp Screw | Wrench | Anti-seize Lubricant | ||
| 16 | VPX200R16 | TPS27F1 | TIP07F | MK1KS |
| 18 | VPX200R18 | TPS27F1 | TIP07F | MK1KS |
| 20 | VPX200R20 | TPS27F1 | TIP07F | MK1KS |
| 22 | VPX200R22 | TPS27F2 | TIP07F | MK1KS |
| 25 | VPX200R25 | TPS27F2 | TIP07F | MK1KS |
| 28 | VPX200R28 | TPS27F2 | TIP07F | MK1KS |
| 30 | VPX200R30 | TPS27F2 | TIP07F | MK1KS |
| 32 | VPX200R32 | TPS27F2 | TIP07F | MK1KS |
| 35 | VPX200R35 | TPS27F2 | TIP07F | MK1KS |
| 40 | VPX200R40 | TPS27F2 | TIP07F | MK1KS |
| 50 | VPX200R50 | TPS27F2 | TIP07F | MK1KS |
