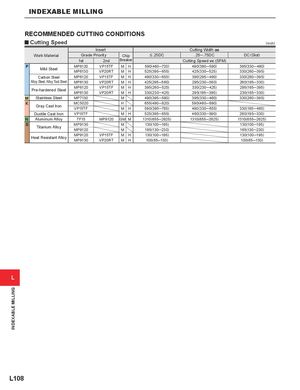

y Cutting Speed (inch)
| Insert | CuttingWidth ae | ||||||
| Work Material | Grade | Priority | Chip | .25─.75DC | DC (Slot) | ||
| 1st | 2nd | Breaker | CuttingSpeedvc (SFM) | ||||
| P | MP6120 | VP15TF | M H | 590(460─720) | 490(360─590) | 395(330─460) | |
| Mild Steel | MP6130 | VP20RT | M H | 525(395─655) | 425(330─525) | 330(260─395) | |
| Carbon Steel | MP6120 | VP15TF | M H | 490(330─655) | 395(295─490) | 330(260─395) | |
| All | oy Steel, Alloy Tool Steel | MP6130 | VP20RT | M H | 425(295─560) | 295(230─360) | 260(195─330) |
| MP6120 | VP15TF | M H | 395(260─525) | 330(230─425) | 295(165─395) | ||
| P | e-hardened Steel | MP6130 | VP20RT | M H | 330(230─425) | 295(195─395) | 230(165─330) |
| M | Stainless Steel | MP7130 | M | 490(395─590) | 395(330─460) | 330(260─395) | |
| K | MC5020 | H | 655(490─820) | 590(490─690) | |||
| Gray Cast Iron | VP15TF | M H | 590(395─785) | 490(330─655) | 330(195─460) | ||
| Ductile Cast Iron | VP15TF | M H | 525(395─655) | 460(330─590) | 260(195─330) | ||
| N | Aluminum Alloy | TF15 | MP9120 | GM M | 1310(655─2625) | 1310(655─2625) | 1310(655─2625) |
| S | MP9130 | M | 130(100─195) | 130(100─195) | |||
| Titanium Alloy | MP9120 | M | 165(130─230) | 165(130─230) | |||
| H | t Ritt All | MP9120 | VP15TF | M H | 130(100─195) | 130(100─195) | |
| a essan oy | MP9130 | VP20RT | M H | 100(65─130) | 100(65─130) |
