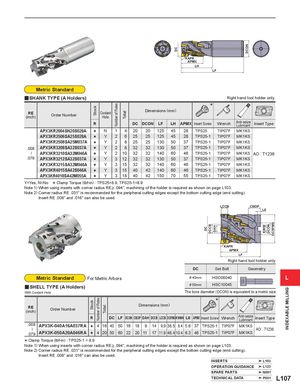

KAPR APMX LH LF
Metric Standard
| y RE SHA (inch) | NK TYPE (A Holders) Order Number | Stock | Coolant Hole | ber of Flutes | Total | Dime | nsions | (mm) | Rig | ht hand to | ol holder only. | |||
| R | Num | DC | DCON | LF | LH | APMX | Insert Screw | Wrench | Anti-seize Lubricant | Insert Type | ||||
| APX3KR2004SN20S028A | s | N | 1 | 4 | 20 | 20 | 125 | 45 | 28 | TPS25 | TIP07F | MK1KS | ||
| APX3KR2506SA25S028A | s | Y | 2 | 6 | 25 | 25 | 125 | 45 | 28 | TPS25-1 | TIP07F | MK1KS | ||
| APX3KR2508SA25M037A | s | Y | 2 | 8 | 25 | 25 | 130 | 50 | 37 | TPS25-1 | TIP07F | MK1KS | ||
| .008 | APX3KR3208SA32S037A | s | Y | 2 | 8 | 32 | 32 | 130 | 50 | 37 | TPS25-1 | TIP07F | MK1KS | |
| ─ | APX3KR3210SA32M046A | s | Y | 2 | 10 | 32 | 32 | 140 | 60 | 46 | TPS25-1 | TIP07F | MK1KS | AOpT1236 |
| .079 | APX3KR3212SA32S037A | s | Y | 3 | 12 | 32 | 32 | 130 | 50 | 37 | TPS25-1 | TIP07F | MK1KS | |
| APX3KR3215SA32M046A | s | Y | 3 | 15 | 32 | 32 | 140 | 60 | 46 | TPS25-1 | TIP07F | MK1KS | ||
| APX3KR4015SA42S046A | s | Y | 3 | 15 | 40 | 42 | 140 | 60 | 46 | TPS25-1 | TIP07F | MK1KS | ||
| APX3KR4018SA42M055A | s | Y | 3 | 18 | 40 | 42 | 150 | 70 | 55 | TPS25-1 | TIP07F | MK1KS |
Y=Yes, N=No * Clamp Torque (lbf-in) : TPS25=8.9, TPS25-1=8.9
Note 1) When using inserts with corner radius RE>.094", machining of the holder is required as shown on page L103. Note 2) Corner radius RE .031" is recommended for the peripheral cutting edges except the bottom cutting edge (end cutting). Insert RE .008" and .016" can also be used. LCCB CBDP L8
KAPR APMX LF Right hand tool holder only.
| DC | Set Bolt | Geometry | ||||
| Metric Standard | For Metric Arbors | & 40mm | HSC08040 | L | ||
| SHELL TYPE (A Holders) | & 50mm | HSC10045 |
y With Coolant Hole The bore diameter (DCON) is equivalent to a metric size. RE Dimensions (mm) Order Number
(inch) R DC LF DCON CBDP DAH DCCB LCCB DCSFMSKWW L8 APMX Insert Screw Wrench Anti-seize Lubricant Insert Type
.008 APX3K-040A16A037RA 4 16 40 50 16 18 9 14 9.9 38.5 8.4 5.6 37 TPS25-1 TIP07F MK1KS
s AO T1236
APX3K-050A20A046RA 4 20 50 60 22 20 11 17 11.9 48.4 10.4 6.3 46 TPS25-1 TIP07F MK1KS p
.079 s * Clamp Torque (lbf-in) : TPS25-1 = 8.9 Note 1) When using inserts with corner radius RE>.094", machining of the holder is required as shown on page L103. Note 2) Corner radius RE .031" is recommended for the peripheral cutting edges except the bottom cutting edge (end cutting).
Insert RE .008" and .016" can also be used.
