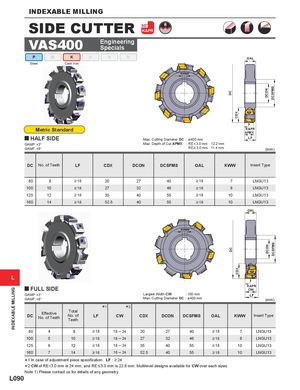

INDEXABLE MILLING SIDE CUTTER 90° KAPR VAS400 Engineering Specials P M K N S H OAL Steel Cast Iron KWW DCSFMS DCON DC CDX Metric Standard KAPR APMX y HALF SIDE Max. Cutting Diameter DC : ø400 mm LF GAMP : +3° Max. Depth of Cut APMX : RE < 3.0 mm 12.2 mm GAMF : +8° RE > 3.0 mm 11.4 mm (mm) DC No. of Teeth LF CDX DCON DCSFMS OAL KWW Insert Type 80 8 > 18 20 27 40 > 18 7 LNGU13 100 10 > 18 27 32 46 > 18 8 LNGU13 125 12 > 18 35 40 55 > 18 10 LNGU13 160 14 > 18 52.5 40 55 > 18 10 LNGU13 OAL KWW DCSFMS DCON DC CDX L KAPR y FULL SIDE INDEXABLE MILLING CW GAMP : +3° Largest Width CW : 100 mm LF GAMF : +8° Max. Cutting Diameter DC : ø400 mm (mm) Total * 1 * 2 Effective DC No. of LF CW CDX DCON DCSFMS OAL KWW Insert Type No. of Teeth Teeth 80 4 8 > 18 18 ─ 24 20 27 40 > 18 7 LNGU13 100 5 10 > 18 18 ─ 24 27 32 46 > 18 8 LNGU13 125 6 12 > 18 18 ─ 24 35 40 55 > 18 10 LNGU13 160 7 14 > 18 18 ─ 24 52.5 40 55 > 18 10 LNGU13 *12 InCWcase of adjustment piece specification. LF : > 24 * of RE<3.0 mm is 24 mm, and RE < 3.0 mm is 22.8 mm. Multilevel designs available for CW over each sizes. Note 1) Please contact us for details of any geometry. L090
