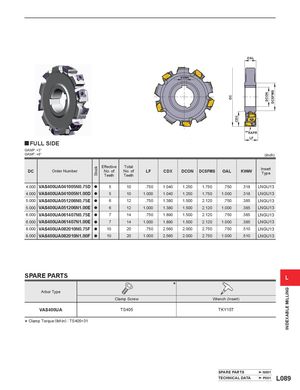

Общий каталог Mitsubishi 2020 - 2021 - страница 1264
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
OAL
KWW
y FULL SIDE
GAMP :+3° GAMF :+8°
KAPR LF
(inch)
| DC | Order Number | Stock | Effective No. of Teeth | Total No. of Teeth | LF | CDX | DCON | DCSFMS | OAL | KWW | Insert Type |
| 4.000 | VAS400UA041005N0.75D | a | 5 | 10 | .750 | 1.040 | 1.250 | 1.750 | .750 | .318 | LNGU13 |
| 4.000 | VAS400UA041005N1.00D | a | 5 | 10 | 1.000 | 1.040 | 1.250 | 1.750 | 1.000 | .318 | LNGU13 |
| 5.000 | VAS400UA051206N0.75E | a | 6 | 12 | .750 | 1.380 | 1.500 | 2.120 | .750 | .385 | LNGU13 |
| 5.000 | VAS400UA051206N1.00E | a | 6 | 12 | 1.000 | 1.380 | 1.500 | 2.120 | 1.000 | .385 | LNGU13 |
| 6.000 | VAS400UA061407N0.75E | a | 7 | 14 | .750 | 1.890 | 1.500 | 2.120 | .750 | .385 | LNGU13 |
| 6.000 | VAS400UA061407N1.00E | a | 7 | 14 | 1.000 | 1.890 | 1.500 | 2.120 | 1.000 | .385 | LNGU13 |
| 8.000 | VAS400UA082010N0.75F | a | 10 | 20 | .750 | 2.560 | 2.000 | 2.750 | .750 | .510 | LNGU13 |
| 8.000 | VAS400UA082010N1.00F | a | 10 | 20 | 1.000 | 2.560 | 2.000 | 2.750 | 1.000 | .510 | LNGU13 |
SPARE PARTS L
| Arbor Type | |
| Clamp Screw Wrench (Insert) | |
| VAS400UA | TS405 TKY15T |
