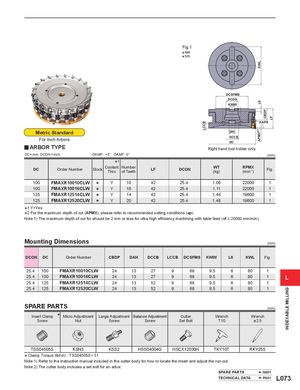

Общий каталог Mitsubishi 2020 - 2021 - страница 1248
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
Fig.1 ø100 ø125
DCSFMS DCON KWW
KAPR Metric Standard DAH For Inch Arbors DCCB DC
y ARBOR TYPE
Right hand tool holder only.
DC=mm, DCON=Inch GAMP: +5° GAMF: 0° (mm)
| DC | Order Number | Stock | 1 Coolant Thru | Number of Teeth | LF | DCON | WT (kg) | RPMX (min-1) | Fig. |
| 100 | FMAXR10010CLW | s | Y | 10 | 42 | 25.4 | 1.06 | 22000 | 1 |
| 100 | FMAXR10016CLW | s | Y | 16 | 42 | 25.4 | 1.11 | 22000 | 1 |
| 125 | FMAXR12514CLW | s | Y | 14 | 42 | 25.4 | 1.44 | 19600 | 1 |
| 125 | FMAXR12520CLW | s | Y | 20 | 42 | 25.4 | 1.48 | 19600 | 1 |
*1 Y=Yes
*2 For the maximum depth of cut (APMX), please refer to recommended cutting conditions (ap). Note 1) The maximum depth of cut for should be 2 mm or less for ultra high efficiency machining with table feed (vf ≥ 20000 mm/min).
Mounting Dimensions
(mm)
| DCON | DC | Order Number | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | KWL | Fig. |
| 25.4 | 100 | FMAXR10010CLW | 24 | 13 | 27 | 9 | 68 | 9.5 | 6 | 80 | 1 |
| 25.4 | 100 | FMAXR10016CLW | 24 | 13 | 27 | 9 | 68 | 9.5 | 6 | 80 | 1 |
| 25.4 | 125 | FMAXR12514CLW | 24 | 13 | 52 | 9 | 68 | 9.5 | 6 | 80 | 1 |
| 25.4 | 125 | FMAXR12520CLW | 24 | 13 | 52 | 9 | 68 | 9.5 | 6 | 80 | 1 |
SPARE PARTS
(mm)
| Insert Clamp Screw | Micro Adjustment Nut | Large Adjustment Screw | Balance Adjustment Screw | Cutter Set Bolt | Wrench T10 | Wrench ø2.5 |
| TSS04505S | KSN3 | KSS2 | HSS04004G | HSCX12030H | TKY10T | RKY25S |
