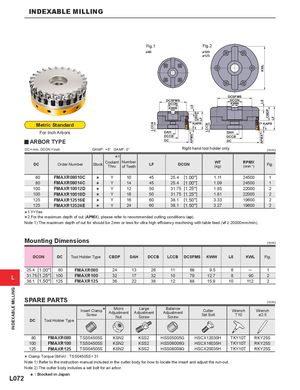

Общий каталог Mitsubishi 2020 - 2021 - страница 1247
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
Fig.1 Fig.2 ø80 ø100 ø125
DCSFMS DCSFMS DCON
| DCSFMS | DCON | KWW | |
| DCON | KWW | ||
| KWW | L8 CBDP |
Metric Standard KAPR KAPR KAPR
| For Inch Arbors | DAH | DAH | DAH | |
| DCCB | DCCB | DCCB | ||
| y ARBOR TYPE | DC | DC | DC |
| DC=mm, DCON=Inch | GAMP: +5° GAMF: 0° | Right hand tool holder only. | (mm) | |
| *1 |
| DC | Order Number | Stock Coolant Number | LF | DCON WT | RPMX | Fig. | |||
| Thru | of Teeth | (kg) | (min-1) | ||||||
| 80 | FMAXR08010C | Y | 10 | 45 | 25.4 [1.00"] | 1.11 | 24500 | 1 | |
| s | |||||||||
| 80 | FMAXR08014C | Y | 14 | 45 | 25.4 [1.00"] | 1.09 | 24500 | 1 | |
| s | |||||||||
| 100 | FMAXR10012D | Y | 12 | 50 | 31.75 [1.25"] | 1.85 | 22000 | 2 | |
| s | |||||||||
| 100 | FMAXR10018D | Y | 18 | 50 | 31.75 [1.25"] | 1.81 | 22000 | 2 | |
| s | |||||||||
| 125 | FMAXR12516E | Y | 16 | 60 | 38.1 [1.50"] | 3.33 | 19600 | 2 | |
| s | |||||||||
| 125 | FMAXR12524E | s | Y | 24 | 60 | 38.1 [1.50"] | 3.27 | 19600 | 2 |
*1 Y=Yes *2 For the maximum depth of cut (APMX), please refer to recommended cutting conditions (ap). Note 1) The maximum depth of cut for should be 2mm or less for ultra high efficiency machining with table feed (vf ≥ 20000mm/min). Mounting Dimensions
(mm)
| D | CON | DC | Tool Holder Type | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | KWL | Fig. |
| 25.4 | [1.00"] | 80 | FMAXR080 | 24 | 13 | 26 | 11 | 68 | 9.5 | 6 | ─ | 1 |
| 31.75 | [1.25"] | 100 | FMAXR100 | 32 | 17 | 32 | 10 | 79 | 12.7 | 8 | 90 | 2 |
| 38.1 | [1.50"] | 125 | FMAXR125 | 36 | 22 | 38 | 12 | 88 | 15.9 | 10 | 112 | 2 |
SPARE PARTS
(mm)
| Insert Clamp Screw | Micro Adjustment Nut | Large Adjustment Screw | Balance Adjustment Screw | Cutter Set Bolt | Wrench T10 | Wrench ø2.5 | ||
| DC | Tool Holder Type | |||||||
| 80 | FMAXR080 | TSS04505S | KSN2 | KSS2 | HSS05005G | HSCX12030H | TKY10T | RKY25S |
| 100 | FMAXR100 | TSS04505S | KSN2 | KSS2 | HSS06006G | HSCX16035H | TKY10T | RKY25S |
| 125 | FMAXR125 | TSS04505S | KSN2 | KSS2 | HSS08008G | HSCX20035H | TKY10T | RKY25S |
L072 s: Stocked in Japan
