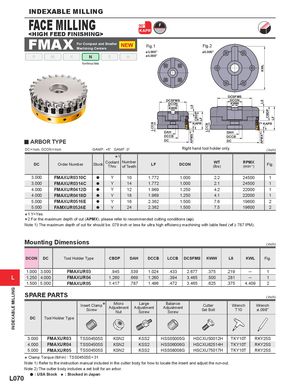

Общий каталог Mitsubishi 2020 - 2021 - страница 1245
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
FMAX<HIGH FEED FINISHING> KAPR
| For Compact and Smaller | Fig.1 | Fig.2 |
| Machining Centers | ||
| ø3.000" | ø5.000" |
PP MM KK NN SS HH ø4.000"
Non-ferrous Metal
DCSFMS DCSFMS DCON
| DCSFMS | DCON | KWW | |
| DCON | KWW | ||
| KWW | L8 CBDP |
KAPR KAPR KAPR
| DAH | DAH | DAH | |
| DCCB | DCCB | DCCB | |
| y ARBOR TYPE | DC | DC | DC |
| DC DC=Inch, DC | Order Number ON=Inch | GAMP: Stock | +5° GA 1 Coolant Thru | MF: 0° Number of Teeth | LF | DCON Right hand | WT (lbs) tool holder only. | RPMX (min-1) | Fig. (inc |
| 3.000 | FMAXUR0310C | a | Y | 10 | 1.772 | 1.000 | 2.2 | 24500 | 1 |
| 3.000 | FMAXUR0314C | a | Y | 14 | 1.772 | 1.000 | 2.1 | 24500 | 1 |
| 4.000 | FMAXUR0412D | a | Y | 12 | 1.969 | 1.250 | 4.2 | 22000 | 1 |
| 4.000 | FMAXUR0418D | a | Y | 18 | 1.969 | 1.250 | 4.1 | 22000 | 1 |
| 5.000 | FMAXUR0516E | a | Y | 16 | 2.362 | 1.500 | 7.6 | 19600 | 2 |
| 5.000 | FAMXUR0524E | a | Y | 24 | 2.362 | 1.500 | 7.5 | 19600 | 2 |
*1 Y=Yes
*2 For the maximum depth of cut (APMX), please refer to recommended cutting conditions (ap). Note 1) The maximum depth of cut for should be .079 inch or less for ultra high efficiency machining with table feed (vf ≥ 787 IPM).
Mounting Dimensions
(inch)
| DCON | DC | Tool Holder Type | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | KWL | Fig. |
| 1.000 | 3.000 | FMAXUR03 | .945 | .539 | 1.024 | .433 | 2.677 | .375 | .219 | ─ | 1 |
| 1.250 | 4.000 | FMAXUR04 | 1.260 | .669 | 1.260 | .394 | 3.465 | .500 | .281 | ─ | 1 |
| 1.500 | 5.000 | FMAXUR05 | 1.417 | .787 | 1.496 | .472 | 3.465 | .625 | .375 | 4.409 | 2 |
SPARE PARTS
(inch)
| Insert Clamp Screw | Micro Adjustment Nut | Large Adjustment Screw | Balance Adjustment Screw | Cutter Set Bolt | Wrench T10 | Wrench ø.098" | ||
| DC | Tool Holder Type | |||||||
| 3.000 | FMAXUR03 | TSS04505S | KSN2 | KSS2 | HSS05005G | HSCXU50012H | TKY10T | RKY25S |
| 4.000 | FMAXUR04 | TSS04505S | KSN2 | KSS2 | HSS06006G | HSCXU62514H | TKY10T | RKY25S |
| 5.000 | FMAXUR05 | TSS04505S | KSN2 | KSS2 | HSS08008G | HSCXU75017H | TKY10T | RKY25S |
