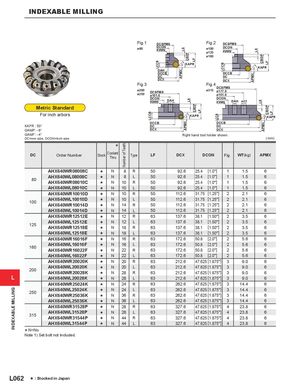

Fig.1	DCSFMS	Fig.2	DCSFMS
ø80	DCON	ø100	DCON
	KWW		KWW

ø125 ø160 KAPR KAPR

DAH

		DCCB		DCCB
		DC		DC
		DCX		DCX
Fig.3			Fig.4
			DCSFMS
ø200	DCSFMS		ø315 ø177.8
ø250	ø101.6		ø101.6
	DCON		DAH DCON
	KWW		KWW	DAH ø22
Metric Standard
For inch arbors				CBDP LF
			KAPR	KAPR
	DCCB		DCCB
KAPR : 50°	DC		DC
GAMP : -6°	DCX		DCX

GAMF : -4° Right hand tool holder shown. DC=mm size, DCON=Inch size (mm)

DC	Order Number	Stock	Coolant Thru	Number of Teeth	Type	LF	DCX	D	CON	Fig.	WT(kg)	APMX
	AHX640WR08008C	s	N	8	R	50	92.6	25.4	[1.0"]	1	1.5	6
	AHX640WL08008C	s	N	8	L	50	92.6	25.4	[1.0"]	1	1.5	6
80	AHX640WR08010C	s	N	10	R	50	92.6	25.4	[1.0"]	1	1.5	6
	AHX640WL08010C	s	N	10	L	50	92.6	25.4	[1.0"]	1	1.5	6
	AHX640WR10010D	s	N	10	R	50	112.6	31.75	[1.25"]	2	2.1	6
	AHX640WL10010D	s	N	10	L	50	112.6	31.75	[1.25"]	2	2.1	6
100	AHX640WR10014D	s	N	14	R	50	112.6	31.75	[1.25"]	2	2.1	6
	AHX640WL10014D	s	N	14	L	50	112.6	31.75	[1.25"]	2	2.1	6
	AHX640WR12512E	s	N	12	R	63	137.6	38.1	[1.50"]	2	3.5	6
	AHX640WL12512E	s	N	12	L	63	137.6	38.1	[1.50"]	2	3.5	6
125	AHX640WR12518E	s	N	18	R	63	137.6	38.1	[1.50"]	2	3.5	6
	AHX640WL12518E	s	N	18	L	63	137.6	38.1	[1.50"]	2	3.5	6
	AHX640WR16016F	s	N	16	R	63	172.6	50.8	[2.0"]	2	5.6	6
	AHX640WL16016F	s	N	16	L	63	172.6	50.8	[2.0"]	2	5.6	6
160	AHX640WR16022F	s	N	22	R	63	172.6	50.8	[2.0"]	2	5.6	6
	AHX640WL16022F	s	N	22	L	63	172.6	50.8	[2.0"]	2	5.6	6
	AHX640WR20020K	s	N	20	R	63	212.6	47.625	[1.875"]	3	9.0	6
	AHX640WL20020K	s	N	20	L	63	212.6	47.625	[1.875"]	3	9.0	6
200	AHX640WR20028K	s	N	28	R	63	212.6	47.625	[1.875"]	3	9.0	6
	AHX640WL20028K	s	N	28	L	63	212.6	47.625	[1.875"]	3	9.0	6
	AHX640WR25024K	s	N	24	R	63	262.6	47.625	[1.875"]	3	14.4	6
	AHX640WL25024K	s	N	24	L	63	262.6	47.625	[1.875"]	3	14.4	6
250	AHX640WR25036K	s	N	36	R	63	262.6	47.625	[1.875"]	3	14.4	6
	AHX640WL25036K	s	N	36	L	63	262.6	47.625	[1.875"]	3	14.4	6
	AHX640WR31528P	s	N	28	R	63	327.6	47.625	[1.875"]	4	23.8	6
	AHX640WL31528P	s	N	28	L	63	327.6	47.625	[1.875"]	4	23.8	6
315	AHX640WR31544P	s	N	44	R	63	327.6	47.625	[1.875"]	4	23.8	6
	AHX640WL31544P	s	N	44	L	63	327.6	47.625	[1.875"]	4	23.8	6

* N=No

Note 1) Set bolt not included.
