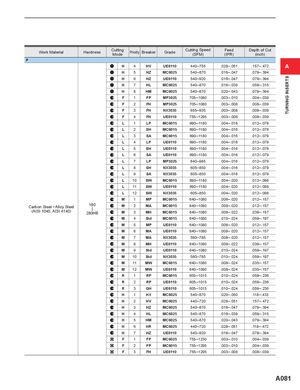

| Work Material | Hardness | Cut Mo | ting de | Priority | Breaker | Grade | Cutting Speed (SFM) | Feed (IPR) | Depth of Cut (inch) | |
| P | H | 4 | HV | UE6110 | 440─755 | .028─.051 | .157─.472 | |||
| H | 5 | HZ | MC6025 | 540─870 | .016─.047 | .079─.394 | ||||
| H | 6 | HZ | UE6110 | 540─920 | .016─.047 | .079─.394 | ||||
| H | 7 | HL | MC6025 | 540─870 | .016─.039 | .059─.315 | ||||
| H | 8 | HM | MC6025 | 540─870 | .020─.043 | .079─.394 | ||||
| F | 1 | FP | MP3025 | 705─1080 | .003─.010 | .004─.039 | ||||
| F | 2 | FH | MP3025 | 705─1080 | .003─.008 | .008─.039 | ||||
| F | 3 | FH | NX3035 | 655─935 | .003─.008 | .008─.039 | ||||
| F | 4 | FH | UE6110 | 755─1295 | .003─.008 | .008─.039 | ||||
| L | 1 | LP | MC6015 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 2 | SH | MC6015 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 3 | SA | MC6015 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 4 | LP | UE6110 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 5 | SH | UE6110 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 6 | SA | UE6110 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 7 | LP | MP3025 | 640─985 | .004─.016 | .012─.079 | ||||
| L | 8 | SH | NX3035 | 605─850 | .004─.016 | .012─.079 | ||||
| L | 9 | SA | NX3035 | 605─850 | .004─.016 | .012─.079 | ||||
| L | 10 | SW | MC6015 | 690─1180 | .004─.020 | .012─.098 | ||||
| L | 11 | SW | UE6110 | 690─1180 | .004─.020 | .012─.098 | ||||
| L | 12 | SW | NX3035 | 605─850 | .004─.020 | .012─.098 | ||||
| M | 1 | MP | MC6015 | 640─1080 | .006─.020 | .012─.157 | ||||
| Carbon Steel • Alloy Steel | 180 | M | 2 | MA | MC6015 | 640─1080 | .008─.020 | .012─.157 | ||
| (AISI 1045, AISI 4140) | 280HB | M | 3 | MH | MC6015 | 640─1080 | .008─.022 | .039─.157 | ||
| M | 4 | Std | MC6015 | 640─1080 | .010─.024 | .059─.197 | ||||
| M | 5 | MP | UE6110 | 640─1080 | .006─.020 | .012─.157 | ||||
| M | 6 | MA | UE6110 | 640─1080 | .008─.020 | .012─.157 | ||||
| M | 7 | MA | NX3035 | 560─785 | .008─.020 | .012─.157 | ||||
| M | 8 | MH | UE6110 | 640─1080 | .008─.022 | .039─.157 | ||||
| M | 9 | Std | UE6110 | 640─1080 | .010─.024 | .059─.197 | ||||
| M | 10 | Std | NX3035 | 560─785 | .010─.024 | .059─.197 | ||||
| M | 11 | MW | MC6015 | 640─1080 | .008─.024 | .035─.157 | ||||
| M | 12 | MW | UE6110 | 640─1080 | .008─.024 | .035─.157 | ||||
| R | 1 | RP | MC6015 | 605─1015 | .010─.024 | .059─.236 | ||||
| R | 2 | RP | UE6110 | 605─1015 | .010─.024 | .059─.236 | ||||
| R | 3 | GH | UE6110 | 605─1015 | .010─.024 | .059─.236 | ||||
| H | 1 | HX | MC6025 | 540─870 | .020─.050 | .118─.433 | ||||
| H | 2 | HV | MC6025 | 440─720 | .028─.051 | .157─.472 | ||||
| H | 3 | HZ | MC6025 | 540─870 | .016─.047 | .079─.394 | ||||
| H | 4 | HL | MC6025 | 540─870 | .016─.039 | .059─.315 | ||||
| H | 5 | HM | MC6025 | 540─870 | .020─.043 | .079─.394 | ||||
| H | 6 | HR | MC6025 | 440─720 | .028─.051 | .118─.472 | ||||
| H | 7 | HZ | UE6110 | 540─920 | .016─.047 | .079─.394 | ||||
| F | 1 | FP | MC6025 | 755─1230 | .003─.010 | .004─.039 | ||||
| F | 2 | FP | MC6015 | 755─1295 | .003─.010 | .004─.039 | ||||
| F | 3 | FH | UE6110 | 755─1295 | .003─.008 | .008─.039 |
