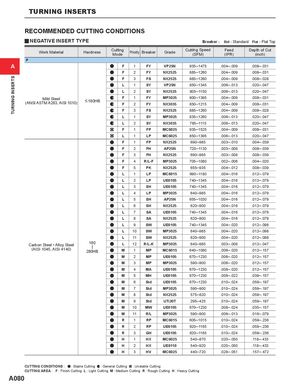

y NEGATIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top
| Work Material | Hardness | Cut Mo | ting de | Priority | Breaker | Grade | Cutting Speed (SFM) | Feed (IPR) | Depth of Cut (inch) | |
| P | ||||||||||
| F | 1 | FY | VP25N | 935─1475 | .004─.009 | .008─.031 | ||||
| F | 2 | FY | NX2525 | 885─1260 | .004─.009 | .008─.031 | ||||
| F | 3 | FS | NX2525 | 885─1260 | .004─.009 | .008─.028 | ||||
| L | 1 | SY | VP25N | 850─1345 | .006─.013 | .020─.047 | ||||
| L | 2 | SY | NX2525 | 805─1150 | .006─.013 | .020─.047 | ||||
| Mild Steel | F | 1 | FY | MP3025 | 900─1395 | .004─.009 | .008─.031 | |||
| (ANSI ASTM A283, AISI 1010) | 180HB | F | 2 | FY | NX3035 | 850─1215 | .004─.009 | .008─.031 | ||
| F | 3 | FS | NX2525 | 885─1260 | .004─.009 | .008─.028 | ||||
| L | 1 | SY | MP3025 | 835─1260 | .006─.013 | .020─.047 | ||||
| L | 2 | SY | NX3035 | 785─1115 | .006─.013 | .020─.047 | ||||
| F | 1 | FP | MC6025 | 935─1525 | .004─.009 | .008─.031 | ||||
| L | 1 | LP | MC6025 | 850─1395 | .006─.013 | .020─.047 | ||||
| F | 1 | FP | NX2525 | 690─985 | .003─.010 | .004─.039 | ||||
| F | 2 | FH | AP25N | 720─1130 | .003─.008 | .008─.039 | ||||
| F | 3 | FH | NX2525 | 690─985 | .003─.008 | .008─.039 | ||||
| F | 4 | R/L-F | MP3025 | 705─1080 | .002─.006 | .004─.020 | ||||
| F | 5 | PK | NX2525 | 655─935 | .004─.012 | .008─.039 | ||||
| L | 1 | LP | MC6015 | 690─1180 | .004─.016 | .012─.079 | ||||
| L | 2 | LP | UE6105 | 740─1345 | .004─.016 | .012─.079 | ||||
| L | 3 | SH | UE6105 | 740─1345 | .004─.016 | .012─.079 | ||||
| L | 4 | LP | MP3025 | 640─985 | .004─.016 | .012─.079 | ||||
| L | 5 | SH | AP25N | 655─1030 | .004─.016 | .012─.079 | ||||
| L | 6 | SH | NX2525 | 620─900 | .004─.016 | .012─.079 | ||||
| L | 7 | SA | UE6105 | 740─1345 | .004─.016 | .012─.079 | ||||
| L | 8 | SA | NX2525 | 620─900 | .004─.016 | .012─.079 | ||||
| L | 9 | SW | UE6105 | 740─1345 | .004─.020 | .012─.098 | ||||
| L | 10 | SW | MP3025 | 640─985 | .004─.020 | .012─.098 | ||||
| L | 11 | SW | NX2525 | 620─900 | .004─.020 | .012─.098 | ||||
| Carbon Steel • Alloy Steel | 180 | L | 12 | R/L-K | MP3025 | 640─985 | .003─.008 | .012─.047 | ||
| (AISI 1045, AISI 4140) | 280HB | M | 1 | MP | MC6015 | 640─1080 | .006─.020 | .012─.157 | ||
| M | 2 | MP | UE6105 | 670─1230 | .006─.020 | .012─.157 | ||||
| M | 3 | MP | MP3025 | 590─900 | .006─.020 | .012─.157 | ||||
| M | 4 | MA | UE6105 | 670─1230 | .008─.020 | .012─.157 | ||||
| M | 5 | MH | UE6105 | 670─1230 | .008─.022 | .039─.157 | ||||
| M | 6 | Std | UE6105 | 670─1230 | .010─.024 | .059─.197 | ||||
| M | 7 | Std | MP3025 | 590─900 | .010─.024 | .059─.197 | ||||
| M | 8 | Std | NX2525 | 575─820 | .010─.024 | .059─.197 | ||||
| M | 9 | Std | UTi20T | 295─425 | .010─.024 | .059─.197 | ||||
| M | 10 | MW | UE6105 | 670─1230 | .008─.024 | .035─.157 | ||||
| M | 11 | R/L | MP3025 | 590─900 | .006─.013 | .016─.079 | ||||
| R | 1 | RP | MC6015 | 605─1015 | .010─.024 | .059─.236 | ||||
| R | 2 | RP | UE6105 | 620─1165 | .010─.024 | .059─.236 | ||||
| R | 3 | GH | UE6105 | 620─1165 | .010─.024 | .059─.236 | ||||
| H | 1 | HX | MC6025 | 540─870 | .020─.050 | .118─.433 | ||||
| H | 2 | HX | UE6110 | 540─920 | .020─.050 | .118─.433 | ||||
| H | 3 | HV | MC6025 | 440─720 | .028─.051 | .157─.472 |
