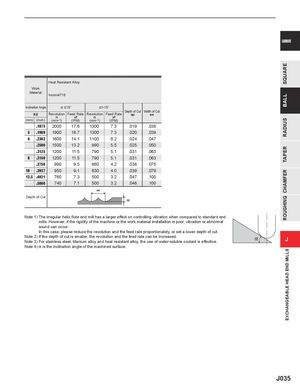

CARBIDE
| W Ma | ork terial | Heat Resist Inconel718 | ant Alloy | ||||
| Inclinati | on Angle | % | 15° | %> | 15° | Depth of Cut | Width of Cut |
| R (mm) | E (inch) | Revolution n (min-1) | Feed Rate vf (IPM) | Revolution n (min-1) | Feed Rate vf (IPM) | ap | ae |
| .1875 | 2000 | 17.6 | 1300 | 7.3 | .019 | .038 | |
| 5 | .1969 | 1900 | 16.7 | 1300 | 7.3 | .020 | .039 |
| 6 | .2362 | 1600 | 14.1 | 1100 | 6.2 | .024 | .047 |
| .2500 | 1500 | 13.2 | 990 | 5.5 | .025 | .050 | |
| .3125 | 1200 | 11.5 | 790 | 5.1 | .031 | .063 | |
| 8 | .3150 | 1200 | 11.5 | 790 | 5.1 | .031 | .063 |
| .3750 | 990 | 9.5 | 660 | 4.2 | .038 | .075 | |
| 10 | .3937 | 950 | 9.1 | 630 | 4.0 | .039 | .079 |
| 12.5 | .4921 | 760 | 7.3 | 500 | 3.2 | .047 | .100 |
| .5000 | 740 | 7.1 | 500 | 3.2 | .048 | .100 | |
| ae | |||||||
| Depth | of Cut | ap |
Note 1) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and the feed rate proportionately, or set a lower depth of cut.
Note 2) If the depth of cut is smaller, the revolution and the feed rate can be increased. % J
Note 3) For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. Note 4) % is the inclination angle of the machined surface.
