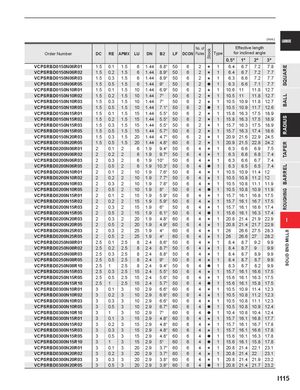

(mm) CARBIDE
| Order Number | DC | RE | APMX | LU | DN | B2 | LF | DCON | No. of Flutes | ock | Type | f f | Effectiv or inclin | fe length ed angl | f e |
| St | 0.5° | 1° | 2° | 3° | |||||||||||
| VCPSRBD0150N06R01 | 1.5 | 0.1 | 1.5 | 6 | 1.44 | 8.8° | 50 | 6 | 2 | s | 1 | 6.4 | 6.7 | 7.2 | 7.8 |
| VCPSRBD0150N06R02 | 1.5 | 0.2 | 1.5 | 6 | 1.44 | 8.9° | 50 | 6 | 2 | s | 1 | 6.4 | 6.7 | 7.2 | 7.7 |
| VCPSRBD0150N06R03 | 1.5 | 0.3 | 1.5 | 6 | 1.44 | 8.9° | 50 | 6 | 2 | s | 1 | 6.3 | 6.6 | 7.2 | 7.7 |
| VCPSRBD0150N06R05 | 1.5 | 0.5 | 1.5 | 6 | 1.44 | 9° | 50 | 6 | 2 | a | 1 | 6.3 | 6.6 | 7.1 | 7.7 |
| VCPSRBD0150N10R01 | 1.5 | 0.1 | 1.5 | 10 | 1.44 | 6.9° | 50 | 6 | 2 | s | 1 | 10.6 | 11 | 11.8 | 12.7 |
| VCPSRBD0150N10R02 | 1.5 | 0.2 | 1.5 | 10 | 1.44 | 7° | 50 | 6 | 2 | s | 1 | 10.5 | 11 | 11.8 | 12.7 |
| VCPSRBD0150N10R03 | 1.5 | 0.3 | 1.5 | 10 | 1.44 | 7° | 50 | 6 | 2 | s | 1 | 10.5 | 10.9 | 11.8 | 12.7 |
| VCPSRBD0150N10R05 | 1.5 | 0.5 | 1.5 | 10 | 1.44 | 7.1° | 50 | 6 | 2 | a | 1 | 10.5 | 10.9 | 11.7 | 12.6 |
| VCPSRBD0150N15R01 | 1.5 | 0.1 | 1.5 | 15 | 1.44 | 5.5° | 50 | 6 | 2 | s | 1 | 15.8 | 16.3 | 17.5 | 18.9 |
| VCPSRBD0150N15R02 | 1.5 | 0.2 | 1.5 | 15 | 1.44 | 5.5° | 50 | 6 | 2 | s | 1 | 15.8 | 16.3 | 17.5 | 18.9 |
| VCPSRBD0150N15R03 | 1.5 | 0.3 | 1.5 | 15 | 1.44 | 5.5° | 50 | 6 | 2 | s | 1 | 15.7 | 16.3 | 17.5 | 18.9 |
| VCPSRBD0150N15R05 | 1.5 | 0.5 | 1.5 | 15 | 1.44 | 5.7° | 50 | 6 | 2 | s | 1 | 15.7 | 16.3 | 17.4 | 18.6 |
| VCPSRBD0150N20R03 | 1.5 | 0.3 | 1.5 | 20 | 1.44 | 4.7° | 60 | 6 | 2 | s | 1 | 20.9 | 21.6 | 22.9 | 24.5 |
| VCPSRBD0150N20R05 | 1.5 | 0.5 | 1.5 | 20 | 1.44 | 4.8° | 60 | 6 | 2 | s | 1 | 20.9 | 21.5 | 22.8 | 24.2 |
| VCPSRBD0200N06R01 | 2 | 0.1 | 2 | 6 | 1.9 | 9.4° | 50 | 6 | 4 | s | 1 | 6.3 | 6.6 | 6.9 | 7.5 |
| VCPSRBD0200N06R02 | 2 | 0.2 | 2 | 6 | 1.9 | 9.7° | 50 | 6 | 4 | s | 1 | 6.3 | 6.6 | 6.8 | 7.4 |
| VCPSRBD0200N06R03 | 2 | 0.3 | 2 | 6 | 1.9 | 10° | 50 | 6 | 4 | s | 1 | 6.3 | 6.6 | 6.7 | 7.4 |
| VCPSRBD0200N06R05 | 2 | 0.5 | 2 | 6 | 1.9 | 10.3° | 50 | 6 | 4 | a | 1 | 6.3 | 6.5 | 6.5 | 7.4 |
| VCPSRBD0200N10R01 | 2 | 0.1 | 2 | 10 | 1.9 | 7.6° | 50 | 6 | 4 | s | 1 | 10.5 | 10.9 | 11.4 | 12 |
| VCPSRBD0200N10R02 | 2 | 0.2 | 2 | 10 | 1.9 | 7.7° | 50 | 6 | 4 | s | 1 | 10.5 | 10.8 | 11.2 | 12 |
| VCPSRBD0200N10R03 | 2 | 0.3 | 2 | 10 | 1.9 | 7.8° | 50 | 6 | 4 | s | 1 | 10.5 | 10.8 | 11.1 | 11.9 |
| VCPSRBD0200N10R05 | 2 | 0.5 | 2 | 10 | 1.9 | 8° | 50 | 6 | 4 | a | 1 | 10.5 | 10.8 | 10.9 | 11.9 |
| VCPSRBD0200N15R01 | 2 | 0.1 | 2 | 15 | 1.9 | 5.9° | 50 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.8 | 17.5 |
| VCPSRBD0200N15R02 | 2 | 0.2 | 2 | 15 | 1.9 | 5.9° | 50 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.7 | 17.5 |
| VCPSRBD0200N15R03 | 2 | 0.3 | 2 | 15 | 1.9 | 6° | 50 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.6 | 17.4 |
| VCPSRBD0200N15R05 | 2 | 0.5 | 2 | 15 | 1.9 | 6.1° | 50 | 6 | 4 | a | 1 | 15.6 | 16.1 | 16.3 | 17.4 |
| VCPSRBD0200N20R03 | 2 | 0.3 | 2 | 20 | 1.9 | 4.8° | 60 | 6 | 4 | s | 1 | 20.8 | 21.4 | 21.9 | 22.9 |
| VCPSRBD0200N20R05 | 2 | 0.5 | 2 | 20 | 1.9 | 4.9° | 60 | 6 | 4 | s | 1 | 20.8 | 21.4 | 21.7 | 22.9 |
| VCPSRBD0200N25R03 | 2 | 0.3 | 2 | 25 | 1.9 | 4° | 60 | 6 | 4 | s | 1 | 26 | 26.6 | 27.5 | 28.3 |
| VCPSRBD0200N25R05 | 2 | 0.5 | 2 | 25 | 1.9 | 4° | 60 | 6 | 4 | s | 1 | 26 | 26.6 | 27 | 28.2 |
| VCPSRBD0250N08R01 | 2.5 | 0.1 | 2.5 | 8 | 2.4 | 8.6° | 50 | 6 | 4 | s | 1 | 8.4 | 8.7 | 9.2 | 9.9 |
| VCPSRBD0250N08R02 | 2.5 | 0.2 | 2.5 | 8 | 2.4 | 8.7° | 50 | 6 | 4 | s | 1 | 8.4 | 8.7 | 9 | 9.9 |
| VCPSRBD0250N08R03 | 2.5 | 0.3 | 2.5 | 8 | 2.4 | 8.8° | 50 | 6 | 4 | s | 1 | 8.4 | 8.7 | 8.9 | 9.9 |
| VCPSRBD0250N08R05 | 2.5 | 0.5 | 2.5 | 8 | 2.4 | 9° | 50 | 6 | 4 | s | 1 | 8.4 | 8.7 | 8.7 | 9.9 |
| VCPSRBD0250N08R10 | 2.5 | 1 | 2.5 | 8 | 2.4 | 9.4° | 50 | 6 | 4 | a | 1 | 8.3 | 8.7 | 8.2 | 9.9 |
| VCPSRBD0250N15R03 | 2.5 | 0.3 | 2.5 | 15 | 2.4 | 5.5° | 50 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.6 | 17.5 |
| VCPSRBD0250N15R05 | 2.5 | 0.5 | 2.5 | 15 | 2.4 | 5.6° | 50 | 6 | 4 | s | 1 | 15.6 | 16.1 | 16.3 | 17.5 |
| VCPSRBD0250N15R10 | 2.5 | 1 | 2.5 | 15 | 2.4 | 5.7° | 50 | 6 | 4 | a | 1 | 15.6 | 16.1 | 15.8 | 17.5 |
| VCPSRBD0300N10R01 | 3 | 0.1 | 3 | 10 | 2.9 | 6.6° | 60 | 6 | 4 | s | 1 | 10.5 | 10.9 | 11.4 | 12.3 |
| VCPSRBD0300N10R02 | 3 | 0.2 | 3 | 10 | 2.9 | 6.6° | 60 | 6 | 4 | s | 1 | 10.5 | 10.8 | 11.2 | 12.3 |
| VCPSRBD0300N10R03 | 3 | 0.3 | 3 | 10 | 2.9 | 6.6° | 60 | 6 | 4 | s | 1 | 10.5 | 10.8 | 11.1 | 12.3 |
| VCPSRBD0300N10R05 | 3 | 0.5 | 3 | 10 | 2.9 | 6.7° | 60 | 6 | 4 | a | 1 | 10.5 | 10.8 | 10.9 | 12.4 |
| VCPSRBD0300N10R10 | 3 | 1 | 3 | 10 | 2.9 | 7° | 60 | 6 | 4 | a | 1 | 10.4 | 10.8 | 10.4 | 12.4 |
| VCPSRBD0300N15R01 | 3 | 0.1 | 3 | 15 | 2.9 | 4.8° | 60 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.8 | 17.7 |
| VCPSRBD0300N15R02 | 3 | 0.2 | 3 | 15 | 2.9 | 4.8° | 60 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.7 | 17.8 |
| VCPSRBD0300N15R03 | 3 | 0.3 | 3 | 15 | 2.9 | 4.8° | 60 | 6 | 4 | s | 1 | 15.7 | 16.1 | 16.6 | 17.8 |
| VCPSRBD0300N15R05 | 3 | 0.5 | 3 | 15 | 2.9 | 4.8° | 60 | 6 | 4 | a | 1 | 15.6 | 16.1 | 16.3 | 17.8 |
| VCPSRBD0300N15R10 | 3 | 1 | 3 | 15 | 2.9 | 5° | 60 | 6 | 4 | a | 1 | 15.6 | 16.1 | 15.8 | 17.8 |
| VCPSRBD0300N20R01 | 3 | 0.1 | 3 | 20 | 2.9 | 3.7° | 60 | 6 | 4 | s | 1 | 20.8 | 21.4 | 22.1 | 23.1 |
| VCPSRBD0300N20R02 | 3 | 0.2 | 3 | 20 | 2.9 | 3.7° | 60 | 6 | 4 | s | 1 | 20.8 | 21.4 | 22 | 23.1 |
| VCPSRBD0300N20R03 | 3 | 03 | 3 | 20 | 29 | 38° | 60 | 6 | 4 | s | 1 | 208 | 214 | 219 | 232 |
| VCPSRBD0300N20R05 | 3 | . 0.5 | 3 | 20 | . 2.9 | . 3.8° | 60 | 6 | 4 | a | 1 | . 20.8 | . 21.4 | . 21.7 | . 23.2 |
