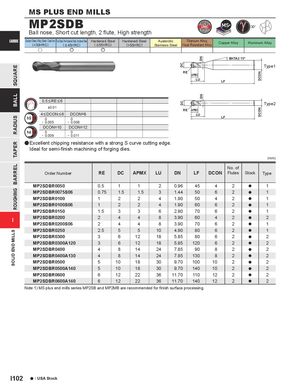

MP2SDB
Ball nose, Short cut length, 2 flute, High strength
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | ||||
| (<30HRC) | ( | ( 55HRC) | (> | |||||
| < 45HRC) | < | 55HRC) | Stainless Steel |
u e e
Titanium Alloy,
Heat Resistant Alloy Copper Alloy Aluminum Alloy
BHTA2 15° Type1 RE APMX LU LF
0.5< RE<6 ±0.01
= RE APMX
| 4< DCON< 6 | LU 8 DCON |
| 0 | 0 |
| - 0.005 | - 0.006 |
| DCON=10 | DCON=12 |
| 0 | 0 |
| - 0.009 | - 0.011 |
a Excellent chipping resistance with a strong S curve cutting edge. Ideal for semi-finish machining of forging dies.
LF
Type2
(mm)
| Order Number | RE | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| MP2SDBR0050 | 0.5 | 1 | 1 | 2 | 0.96 | 45 | 4 | 2 | a | 1 |
| MP2SDBR0075S06 | 0.75 | 1.5 | 1.5 | 3 | 1.44 | 50 | 6 | 2 | a | 1 |
| MP2SDBR0100 | 1 | 2 | 2 | 4 | 1.90 | 50 | 4 | 2 | a | 1 |
| MP2SDBR0100S06 | 1 | 2 | 2 | 4 | 1.90 | 60 | 6 | 2 | a | 1 |
| MP2SDBR0150 | 1.5 | 3 | 3 | 6 | 2.90 | 70 | 6 | 2 | a | 1 |
| MP2SDBR0200 | 2 | 4 | 4 | 8 | 3.90 | 60 | 4 | 2 | a | 2 |
| MP2SDBR0200S06 | 2 | 4 | 4 | 8 | 3.90 | 70 | 6 | 2 | a | 1 |
| MP2SDBR0250 | 2.5 | 5 | 5 | 10 | 4.90 | 80 | 6 | 2 | a | 1 |
| MP2SDBR0300 | 3 | 6 | 12 | 18 | 5.85 | 80 | 6 | 2 | a | 2 |
| MP2SDBR0300A120 | 3 | 6 | 12 | 18 | 5.85 | 120 | 6 | 2 | a | 2 |
| MP2SDBR0400 | 4 | 8 | 14 | 24 | 7.85 | 90 | 8 | 2 | a | 2 |
| MP2SDBR0400A130 | 4 | 8 | 14 | 24 | 7.85 | 130 | 8 | 2 | a | 2 |
| MP2SDBR0500 | 5 | 10 | 18 | 30 | 9.70 | 100 | 10 | 2 | a | 2 |
| MP2SDBR0500A140 | 5 | 10 | 18 | 30 | 9.70 | 140 | 10 | 2 | a | 2 |
| MP2SDBR0600 | 6 | 12 | 22 | 36 | 11.70 | 110 | 12 | 2 | a | 2 |
| MP2SDBR0600A140 | 6 | 12 | 22 | 36 | 11.70 | 140 | 12 | 2 | a | 2 |
Note 1) MS plus end mills series MP2SB and MP2MB are recommended for finish surface processing.
