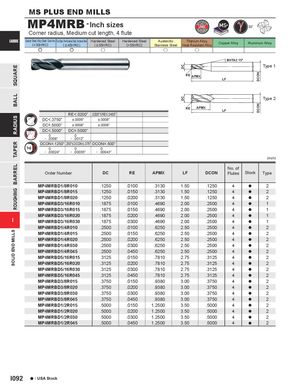

Общий каталог Mitsubishi 2020 - 2021 - страница 851

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

MS PLUS END MILLS MP4MRB - Inch sizes 30° Corner radius, Medium cut length, 4 flute CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e u u u BHTA2 15° Type 1 DC SQUARE DCON RE APMX LF BALL Type 2 DC DCON RE APMX LF RE<.0200" .0200"< RE< .0450" RADIUS DC<.3750" ±.0006" ±.0008" DC=.5000" ±.0008" ±.0008" DC<.5000" DC=.5000" 0 0 - .0008" - .0012" DCON=.1250" .250"< DCON< .375" DCON=.500" TAPER 0 0 0 - .00024" - .00035" - .00043" (inch) ROUGHING BARREL No. of Order Number DC RE APMX LF DCON Flutes Stock Type MP4MRBD1/8R010 .1250 .0100 .3130 1.50 .1250 4 a 2 MP4MRBD1/8R015 .1250 .0150 .3130 1.50 .1250 4 a 2 MP4MRBD1/8R020 .1250 .0200 .3130 1.50 .1250 4 a 2 MP4MRBD3/16R010 .1875 .0100 .4690 2.00 .2500 4 a 1 MP4MRBD3/16R015 .1875 .0150 .4690 2.00 .2500 4 a 1 MP4MRBD3/16R020 .1875 .0200 .4690 2.00 .2500 4 a 1 I MP4MRBD3/16R030 .1875 .0300 .4690 2.00 .2500 4 a 1 MP4MRBD1/4R010 .2500 .0100 .6250 2.50 .2500 4 a 2 SOLID END MILLS MP4MRBD1/4R015 .2500 .0150 .6250 2.50 .2500 4 a 2 MP4MRBD1/4R020 .2500 .0200 .6250 2.50 .2500 4 a 2 MP4MRBD1/4R030 .2500 .0300 .6250 2.50 .2500 4 a 2 MP4MRBD1/4R045 .2500 .0450 .6250 2.50 .2500 4 a 2 MP4MRBD5/16R015 .3125 .0150 .7810 2.75 .3125 4 a 2 MP4MRBD5/16R020 .3125 .0200 .7810 2.75 .3125 4 a 2 MP4MRBD5/16R030 .3125 .0300 .7810 2.75 .3125 4 a 2 MP4MRBD5/16R045 .3125 .0450 .7810 2.75 .3125 4 a 2 MP4MRBD3/8R015 .3750 .0150 .9380 3.00 .3750 4 a 2 MP4MRBD3/8R020 .3750 .0200 .9380 3.00 .3750 4 a 2 MP4MRBD3/8R030 .3750 .0300 .9380 3.00 .3750 4 a 2 MP4MRBD3/8R045 .3750 .0450 .9380 3.00 .3750 4 a 2 MP4MRBD1/2R015 .5000 .0150 1.2500 3.50 .5000 4 a 2 MP4MRBD1/2R020 .5000 .0200 1.2500 3.50 .5000 4 a 2 MP4MRBD1/2R030 .5000 .0300 1.2500 3.50 .5000 4 a 2 MP4MRBD1/2R045 .5000 .0450 1.2500 3.50 .5000 4 a 2 I092 a : USA Stock
