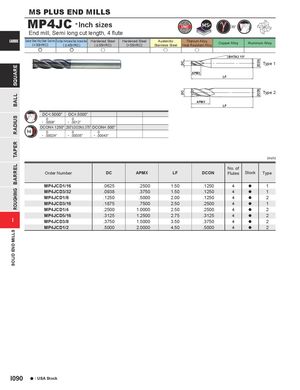

MP4JC - Inch sizes
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( |
| < 45HRC) | <55HRC) |
e e u
DC<.5000" DC=.5000" 0 0 - .0008" - .0012" DCON=.1250" .250" DCON .375" DCON=.500"
| 0 | 0 | 0 |
| - .00024" | - .00035" | - .00043" |
Hardened Steel 55HRC)
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
APMX
APMX
Copper Alloy Aluminum Alloy BHTA2 15° Type 1 LF
Type 2 LF
(inch)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP4JCD1/16 | .0625 | .2500 | 1.50 | .1250 | 4 | a | 1 |
| MP4JCD3/32 | .0938 | .3750 | 1.50 | .1250 | 4 | a | 1 |
| MP4JCD1/8 | .1250 | .5000 | 2.00 | .1250 | 4 | a | 2 |
| MP4JCD3/16 | .1875 | .7500 | 2.50 | .2500 | 4 | a | 1 |
| MP4JCD1/4 | .2500 | 1.0000 | 2.50 | .2500 | 4 | a | 2 |
| MP4JCD5/16 | .3125 | 1.2500 | 2.75 | .3125 | 4 | a | 2 |
| MP4JCD3/8 | .3750 | 1.5000 | 3.50 | .3750 | 4 | a | 2 |
| MP4JCD1/2 | .5000 | 2.0000 | 4.50 | .5000 | 4 | a | 2 |
