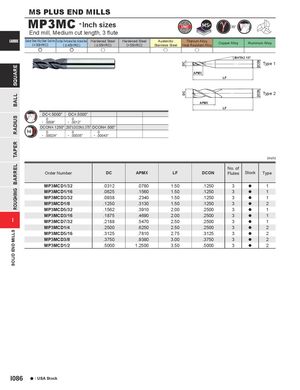

MP3MC - Inch sizes
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( |
| < 45HRC) | <55HRC) |
e e u
DC<.5000" DC=.5000" 0 0 - .0008" - .0012" DCON=.1250" .250" DCON .375" DCON=.500"
| 0 | 0 | 0 |
| - .00024" | - .00035" | - .00043" |
Hardened Steel 55HRC)
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
APMX
APMX
Copper Alloy Aluminum Alloy
BHTA2 15° Type 1
LF
Type 2
LF
(inch)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP3MCD1/32 | .0312 | .0780 | 1.50 | .1250 | 3 | a | 1 |
| MP3MCD1/16 | .0625 | .1560 | 1.50 | .1250 | 3 | a | 1 |
| MP3MCD3/32 | .0938 | .2340 | 1.50 | .1250 | 3 | a | 1 |
| MP3MCD1/8 | .1250 | .3130 | 1.50 | .1250 | 3 | a | 2 |
| MP3MCD5/32 | .1562 | .3910 | 2.00 | .2500 | 3 | a | 1 |
| MP3MCD3/16 | .1875 | .4690 | 2.00 | .2500 | 3 | a | 1 |
| MP3MCD7/32 | .2188 | .5470 | 2.50 | .2500 | 3 | a | 1 |
| MP3MCD1/4 | .2500 | .6250 | 2.50 | .2500 | 3 | a | 2 |
| MP3MCD5/16 | .3125 | .7810 | 2.75 | .3125 | 3 | a | 2 |
| MP3MCD3/8 | .3750 | .9380 | 3.00 | .3750 | 3 | a | 2 |
| MP3MCD1/2 | .5000 | 1.2500 | 3.50 | .5000 | 3 | a | 2 |
