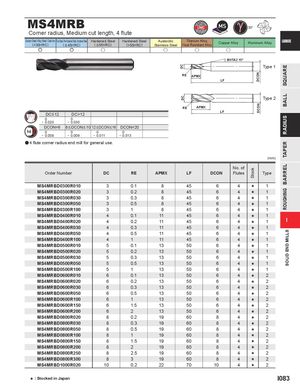

Общий каталог Mitsubishi 2020 - 2021 - страница 842
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
| Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | ||||
| (<30HRC) | ( | ( 55HRC) | (> | |||
| < 45HRC) | < | 55HRC) |
e e u
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| DCON=6 8 | DCON | 10 12 | 16 DCON=20 DCON |
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a 4 flute corner radius end mill for general use.
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
RE APMX
RE APMX
CARBIDE Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
Type 2 LF
(mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS4MRBD0300R010 | 3 | 0.1 | 8 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0300R020 | 3 | 0.2 | 8 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0300R030 | 3 | 0.3 | 8 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0300R050 | 3 | 0.5 | 8 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0300R100 | 3 | 1 | 8 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0400R010 | 4 | 0.1 | 11 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0400R020 | 4 | 0.2 | 11 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0400R030 | 4 | 0.3 | 11 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0400R050 | 4 | 0.5 | 11 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0400R100 | 4 | 1 | 11 | 45 | 6 | 4 | s | 1 |
| MS4MRBD0500R010 | 5 | 0.1 | 13 | 50 | 6 | 4 | s | 1 |
| MS4MRBD0500R020 | 5 | 0.2 | 13 | 50 | 6 | 4 | s | 1 |
| MS4MRBD0500R030 | 5 | 0.3 | 13 | 50 | 6 | 4 | s | 1 |
| MS4MRBD0500R050 | 5 | 0.5 | 13 | 50 | 6 | 4 | s | 1 |
| MS4MRBD0500R100 | 5 | 1 | 13 | 50 | 6 | 4 | s | 1 |
| MS4MRBD0600R010 | 6 | 0.1 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R020 | 6 | 0.2 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R030 | 6 | 0.3 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R050 | 6 | 0.5 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R100 | 6 | 1 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R150 | 6 | 1.5 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0600R200 | 6 | 2 | 13 | 50 | 6 | 4 | s | 2 |
| MS4MRBD0800R020 | 8 | 0.2 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R030 | 8 | 0.3 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R050 | 8 | 0.5 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R100 | 8 | 1 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R150 | 8 | 1.5 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R200 | 8 | 2 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R250 | 8 | 2.5 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD0800R300 | 8 | 3 | 19 | 60 | 8 | 4 | s | 2 |
| MS4MRBD1000R020 | 10 | 0.2 | 22 | 70 | 10 | 4 | s | 2 |
