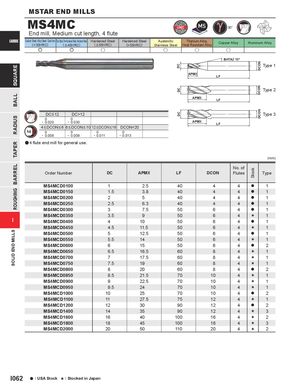

Общий каталог Mitsubishi 2020 - 2021 - страница 821
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MS4MC
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic
| (<30HRC) | ( | ( | 55HRC) | (> | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e u u
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| 4<DCON<6 8< DCON<10 12< DCON< 16 DCON | 20 | ||
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a4 flute end mill for general use.
Titanium Alloy, Heat Resistant Alloy Copper Alloy u u BHTA2 15°
APMX LF
APMX LF
APMX LF
Aluminum Alloy
Type 1
Type 2
Type 3
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS4MCD0100 | 1 | 2.5 | 40 | 4 | 4 | a | 1 |
| MS4MCD0150 | 1.5 | 3.8 | 40 | 4 | 4 | a | 1 |
| MS4MCD0200 | 2 | 5 | 40 | 4 | 4 | a | 1 |
| MS4MCD0250 | 2.5 | 6.3 | 40 | 4 | 4 | a | 1 |
| MS4MCD0300 | 3 | 7.5 | 50 | 6 | 4 | a | 1 |
| MS4MCD0350 | 3.5 | 9 | 50 | 6 | 4 | s | 1 |
| MS4MCD0400 | 4 | 10 | 50 | 6 | 4 | a | 1 |
| MS4MCD0450 | 4.5 | 11.5 | 50 | 6 | 4 | s | 1 |
| MS4MCD0500 | 5 | 12.5 | 50 | 6 | 4 | a | 1 |
| MS4MCD0550 | 5.5 | 14 | 50 | 6 | 4 | s | 1 |
| MS4MCD0600 | 6 | 15 | 50 | 6 | 4 | a | 2 |
| MS4MCD0650 | 6.5 | 16.5 | 60 | 8 | 4 | s | 1 |
| MS4MCD0700 | 7 | 17.5 | 60 | 8 | 4 | s | 1 |
| MS4MCD0750 | 7.5 | 19 | 60 | 8 | 4 | s | 1 |
| MS4MCD0800 | 8 | 20 | 60 | 8 | 4 | a | 2 |
| MS4MCD0850 | 8.5 | 21.5 | 70 | 10 | 4 | s | 1 |
| MS4MCD0900 | 9 | 22.5 | 70 | 10 | 4 | s | 1 |
| MS4MCD0950 | 9.5 | 24 | 70 | 10 | 4 | s | 1 |
| MS4MCD1000 | 10 | 25 | 70 | 10 | 4 | a | 2 |
| MS4MCD1100 | 11 | 27.5 | 75 | 12 | 4 | s | 1 |
| MS4MCD1200 | 12 | 30 | 90 | 12 | 4 | a | 2 |
| MS4MCD1400 | 14 | 35 | 90 | 12 | 4 | s | 3 |
| MS4MCD1600 | 16 | 40 | 100 | 16 | 4 | s | 2 |
| MS4MCD1800 | 18 | 45 | 100 | 16 | 4 | s | 3 |
| MS4MCD2000 | 20 | 50 | 110 | 20 | 4 | s | 2 |
