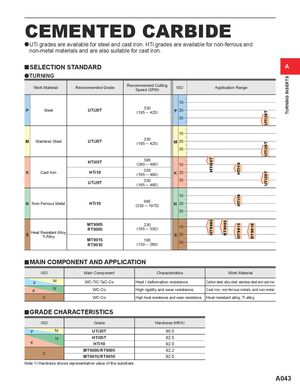

CEMENTED CARBIDE
a UTi grades are available for steel and cast iron. HTi grades are available for non-ferrous and
non-metal materials and are also suitable for cast iron.
ySELECTION STANDARD A
aTURNING
| Work Material | Recommended Grade | Recommended Cutting Speed (SFM) | ISO | A | pplication Ran | ge |
| P Steel | UTi20T | 330 (195 ─ 425) | P 10 20 30 | UTi20T | ||
| M Stainless Steel | UTi20T | 330 (195 ─ 425) | M 10 20 30 | Ti20T | ||
| HTi05T | 395 (260 ─ 490) | 10 | i05T | 10 | U | |
| K Cast Iron | HTi10 | 330 (165 ─ 490) | K 20 | HT | HTi | 0T |
| UTi20T | 330 (165 ─ 490) | 30 | UTi2 | |||
| N Non-Ferrous Metal | HTi10 | 985 (330 ─ 1970) | N 10 20 30 | HTi10 | ||
| Heat Resistant Alloy | MT9005 RT9005 | 230 (165 ─ 330) | 10 | MT9005 | 9015 T9005 | 9010 |
| S Ti Alloy | MT9015 RT9010 | 195 (130 ─ 260) | S 20 30 | MT R | RT |
yMAIN COMPONENT AND APPLICATION
| ISO | Main Component | Characteristics | Work Material |
| P M | WC-TiC-TaC-Co | Heat / deformation resistance. | Carbon steel, alloy steel, stainless steel and cast iron |
| K N | WC-Co | High rigidity and wear resistance. | Cast iron, non-ferrous metals, and non-metal |
| S | WC-Co | High heat resistance and wear resistance. | Heat resistant alloy, Ti alloy |
yGRADE CHARACTERISTICS
| ISO | Grade | Hardness (HRA) | |
| P | M | UTi20T | 90.5 |
| N | HTi05T | 92.5 | |
| K | HTi10 | 92.0 | |
| MT9005/RT9005 | 92.2 | ||
| S | MT9015/RT9010 | 92.0 |
Note 1) Hardness shows representative value of the substrate.
