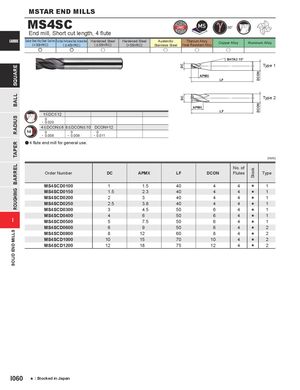

Общий каталог Mitsubishi 2020 - 2021 - страница 819
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MS4SC
End mill, Short cut length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( |
| < 45HRC) | <55HRC) |
e e u
1<DC<12 0 - 0.020
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.008 | - 0.009 | - 0.011 |
a4 flute end mill for general use.
Hardened Steel 55HRC)
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
APMX
APMX
Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
Type 2
LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS4SCD0100 | 1 | 1.5 | 40 | 4 | 4 | s | 1 |
| MS4SCD0150 | 1.5 | 2.3 | 40 | 4 | 4 | s | 1 |
| MS4SCD0200 | 2 | 3 | 40 | 4 | 4 | s | 1 |
| MS4SCD0250 | 2.5 | 3.8 | 40 | 4 | 4 | s | 1 |
| MS4SCD0300 | 3 | 4.5 | 50 | 6 | 4 | s | 1 |
| MS4SCD0400 | 4 | 6 | 50 | 6 | 4 | s | 1 |
| MS4SCD0500 | 5 | 7.5 | 50 | 6 | 4 | s | 1 |
| MS4SCD0600 | 6 | 9 | 50 | 6 | 4 | s | 2 |
| MS4SCD0800 | 8 | 12 | 60 | 8 | 4 | s | 2 |
| MS4SCD1000 | 10 | 15 | 70 | 10 | 4 | s | 2 |
| MS4SCD1200 | 12 | 18 | 75 | 12 | 4 | s | 2 |
