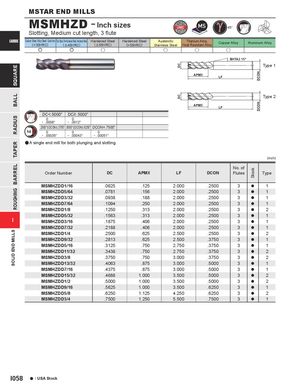

MSMHZD - Inch sizes

Slotting, Medium cut length, 3 flute

CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,

(<30HRC)((55HRC)(>Heat Resistant AlloyCopper AlloyAluminum Alloy
< 45HRC)<55HRC)Stainless Steel

e e u u u u

BHTA2 15° Type 1 APMX LF

DC<.5000"DC.5000"
00
- .0008"- .0012"
.2500" DCON .3750" .5000" DCON .6250" DCON=.7500"
000
- .00035"- .00043"- .00051"

a A single end mill for both plunging and slotting.

APMX

LF

Type 2

(inch)

Order NumberDCAPMXLFDCONNo. of FlutesStockType
MSMHZDD1/16.0625.1252.000.25003a1
MSMHZDD5/64.0781.1562.000.25003a1
MSMHZDD3/32.0938.1882.000.25003a1
MSMHZDD7/64.1094.2502.000.25003a1
MSMHZDD1/8.1250.3132.000.25003a2
MSMHZDD5/32.1563.3132.000.25003a1
MSMHZDD3/16.1875.4062.000.25003a1
MSMHZDD7/32.2188.4062.000.25003a1
MSMHZDD1/4.2500.6252.500.25003a2
MSMHZDD9/32.2813.6252.500.37503a1
MSMHZDD5/16.3125.7502.750.37503a1
MSMHZDD11/32.3438.7502.750.37503a2
MSMHZDD3/8.3750.7503.000.37503a2
MSMHZDD13/32.4063.8753.000.50003a1
MSMHZDD7/16.4375.8753.000.50003a1
MSMHZDD15/32.46881.0003.500.50003a2
MSMHZDD1/2.50001.0003.500.50003a2
MSMHZDD9/16.56251.0003.500.62503a1
MSMHZDD5/8.62501.1254.250.62503a2
MSMHZDD3/4.75001.2505.500.75003a1
