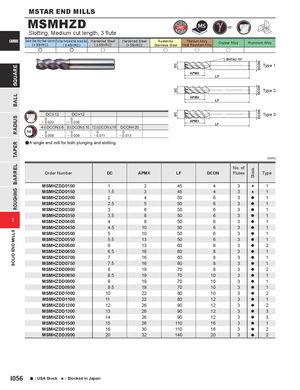

Общий каталог Mitsubishi 2020 - 2021 - страница 815
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MSMHZD
Slotting, Medium cut length, 3 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | (> |
| < 45HRC) | <55HRC) | 55HRC) |
e e u
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| 4<DCON<6 8< DCON<10 12< DCON< 16 DCON | 20 | ||
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a A single end mill for both plunging and slotting.
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy Copper Alloy u u BHTA2 15°
APMX LF
APMX LF
APMX LF
Aluminum Alloy
Type 1
Type 2
Type 3
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MSMHZDD0100 | 1 | 2 | 45 | 4 | 3 | s | 1 |
| MSMHZDD0150 | 1.5 | 3 | 45 | 4 | 3 | s | 1 |
| MSMHZDD0200 | 2 | 4 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0250 | 2.5 | 5 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0300 | 3 | 6 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0350 | 3.5 | 8 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0400 | 4 | 8 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0450 | 4.5 | 10 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0500 | 5 | 10 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0550 | 5.5 | 13 | 50 | 6 | 3 | a | 1 |
| MSMHZDD0600 | 6 | 13 | 60 | 6 | 3 | a | 2 |
| MSMHZDD0650 | 6.5 | 16 | 60 | 8 | 3 | a | 1 |
| MSMHZDD0700 | 7 | 16 | 60 | 8 | 3 | a | 1 |
| MSMHZDD0750 | 7.5 | 16 | 60 | 8 | 3 | a | 1 |
| MSMHZDD0800 | 8 | 19 | 70 | 8 | 3 | a | 2 |
| MSMHZDD0850 | 8.5 | 19 | 70 | 10 | 3 | a | 1 |
| MSMHZDD0900 | 9 | 19 | 70 | 10 | 3 | a | 1 |
| MSMHZDD0950 | 9.5 | 19 | 70 | 10 | 3 | a | 1 |
| MSMHZDD1000 | 10 | 22 | 80 | 10 | 3 | a | 2 |
| MSMHZDD1100 | 11 | 22 | 80 | 12 | 3 | a | 1 |
| MSMHZDD1200 | 12 | 26 | 90 | 12 | 3 | a | 2 |
| MSMHZDD1300 | 13 | 26 | 90 | 12 | 3 | a | 3 |
| MSMHZDD1400 | 14 | 26 | 90 | 12 | 3 | a | 3 |
| MSMHZDD1500 | 15 | 26 | 110 | 16 | 3 | a | 1 |
| MSMHZDD1600 | 16 | 30 | 110 | 16 | 3 | a | 2 |
| MSMHZDD2000 | 20 | 32 | 140 | 20 | 3 | a | 2 |
