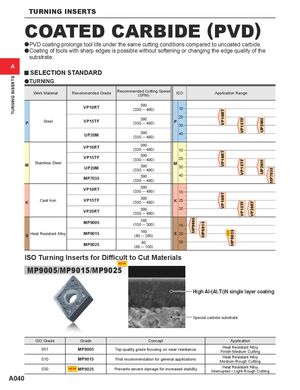

COATED CARBIDE (PVD)
a PVD coating prolongs tool life under the same cutting conditions compared to uncoated carbide.
a Coating of tools with sharp edges is possible without softening or changing the edge quality of the
substrate.
A
y SELECTION STANDARD
aTURNING
| Work Material | Recommended Grade | Recommended Cutting Speed (SFM) | ISO | Application Range |
| VP10RT | 390 (330 ─ 490) | 10 | RT | |
| P Steel | VP15TF | 390 (330 ─ 490) | P 20 30 | VP10 15TF P20M |
| UP20M | 390 (330 ─ 490) | 40 | VP U | |
| VP10RT | 390 (330 ─ 490) | 10 | T | |
| Stainless Steel | VP15TF | 390 (330 ─ 490) | M 20 | P10R TF M |
| M | UP20M | 390 (330 ─ 490) | 30 | V VP15 UP20 035 |
| MP7035 | 390 (330 ─ 490) | 40 | MP7 | |
| VP10RT | 390 (330 ─ 490) | 10 | T | |
| K Cast Iron | VP15TF | 390 (330 ─ 490) | K 20 | P10R TF RT |
| VP20RT | 390 (330 ─ 490) | 30 | V VP15 VP20 | |
| MP9005 | 195 (100 ─ 300) | 10 | 015 9005 | |
| S Heat Resistant Alloy | MP9015 | 160 (80 ─ 260) | S 20 | MP9 MP 9025 |
| MP9025 | 80 (65 ─ 100) | 30 | MP |
ISO Turning Inserts for Difficult to Cut Materials
MP9005/MP9015/MP9025
High Al-(Al,Ti)N single layer coating
Special carbide substrate
| ISO Grade | Grade | Concept | Application |
| S01 | MP9005 | Top-quality grade focusing on wear resistance | Heat Resistant Alloy Finish-Medium Cutting |
| S10 | MP9015 | First recommendation for general applications | Heat Resistant Alloy Medium-Rough Cutting |
| S30 | MP9025 | Prevents severe damage for increased stability | Heat Resistant Alloy Interrupted • Light-Rough Cutting |
