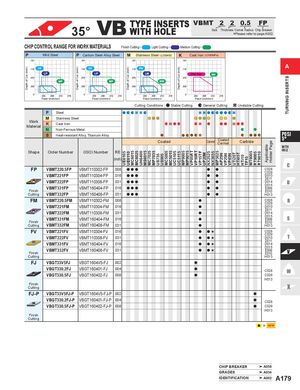

35° VB TYPE INSERTS VBMT 2 2 0.5
WITH HOLE *
FP
Size Thickness Corner Radius Chip Breaker
Please refer to page A002.

CHIP CONTROL RANGE FOR WORK MATERIALS Finish Cutting Light Cutting Medium Cutting
Mild Steel Carbon Steel·Alloy Steel Stainless Steel (<200HB) Cast Iron (<350MPa)

FM A


Depth of Cut (inch)
Depth of Cut (inch)


Depth of Cut (inch)


Depth of Cut (inch)
LM Flat Top MK


TURNING INSERTS
MM


Feed (inch/rev) Feed (inch/rev) Feed (inch/rev) Feed (inch/rev)
Cutting Conditions : Stable Cutting General Cutting Unstable Cutting
P Steel
M Stainless Steel
Work
K Cast Iron
Material
N Non-Ferrous Metal
S Heat-resistant Alloy, Titanium Alloy POSI
Coated Coated
Cermet Cermet Carbide
5º


Holder Page
WITH


Applicable
HOLE
Shape Order Number (ISO) Number RE
MC6015
MC6025

MC7025

MC5005
MC5015


VP05RT
VP10RT
MS6015
MP7035


MP9005
MP9015


MP3025
UH6400


UC5105


VP15TF


MT9005
UE6105


UC5115


NX2525
NX3035
UE6110


RT9005
RT9010
UP20M


UTi20T
HTi05T
AP25N
VP25N
VP45N
US735
US905


HTi10
TF15
(inch)
FP VBMT220.5FP VBMT110302-FP .008 a a a a a C028
C029
VBMT221FP VBMT110304-FP .016 a a a a a D010
D011
VBMT222FP VBMT110308-FP .031 a a a a a D014
D015
VBMT331FP VBMT160404-FP .016 a a a a a E009
Finish E010
Cutting VBMT332FP VBMT160408-FP .031 a a a a a H013
FM VBMT220.5FM VBMT110302-FM .008 a C028
C029
VBMT221FM VBMT110304-FM .016 a D010
D011
VBMT222FM VBMT110308-FM .031 a D014
D015
VBMT331FM VBMT160404-FM .016 a E009
Finish E010
Cutting VBMT332FM VBMT160408-FM .031 a H013
FV VBMT221FV VBMT110304-FV .016 a as C028
C029
VBMT222FV VBMT110308-FV .031 a as D010
D011
VBMT331FV VBMT160404-FV .016 a as D014
D015
VBMT332FV VBMT160408-FV .031 a as E009
Finish E010
Cutting H013
FJ VBGT33V5FJ VBGT1604V5-FJ .002 a
VBGT330.2FJ VBGT160401-FJ .004 a
C028
VBGT330.5FJ VBGT160402-FJ .008 a C029
H013
Finish
Cutting
FJ-P VBGT33V5FJ-P VBGT1604V5-FJ-P .002 a
VBGT330.2FJ-P VBGT160401-FJ-P .004 a
C028
VBGT330.5FJ-P VBGT160402-FJ-P .008 a C029
H013
Finish
Cutting
a =


CHIP BREAKER A058
GRADES A034
IDENTIFICATION A002 A179
