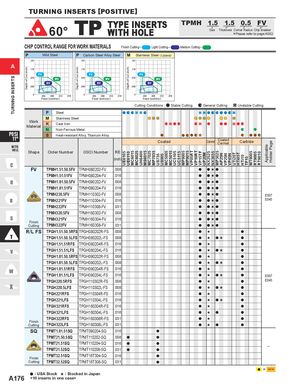

TURNING INSERTS [POSITIVE]

60° TP TYPE INSERTS
WITH HOLE
TPMH 1.5 1.5 0.5 FV
Size Thickness Corner Radius Chip Breaker
* Please refer to page A002.

CHIP CONTROL RANGE FOR WORK MATERIALS Finish Cutting Light Cutting Medium Cutting
Mild Steel Carbon Steel·Alloy Steel Stainless Steel (<200HB)

A
Depth of Cut (inch)


Depth of Cut (inch)


Depth of Cut (inch)
TURNING INSERTS


Feed (inch/rev) Feed (inch/rev) Feed (inch/rev)
Cutting Conditions : Stable Cutting General Cutting Unstable Cutting
P Steel
M Stainless Steel
Work
K Cast Iron
Material
N Non-Ferrous Metal
POSI S Heat-resistant Alloy, Titanium Alloy
11º Coated Coated
Cermet Cermet Carbide


Holder Page
WITH


Applicable
HOLE
Shape Order Number (ISO) Number RE
MC6015
MC6025

MC7025

MC5005
MC5015


VP05RT
VP10RT
MS6015
MP7035


MP9005
MP9015


MP3025
UH6400


UC5105


VP15TF


MT9005
UE6105


UC5115


NX2525
NX3035
UE6110


RT9005
RT9010
UP20M


UTi20T
HTi05T
AP25N
VP25N
VP45N
US735
US905


HTi10
TF15
(inch)
FV TPMH1.51.50.5FV TPMH080202-FV .008 a as a
TPMH1.51.51FV TPMH080204-FV .016 a as a
TPMH1.81.50.5FV TPMH090202-FV .008 a as a
TPMH1.81.51FV TPMH090204-FV .016 a as a
TPMH220.5FV TPMH110302-FV .008 a as a E007
TPMH221FV TPMH110304-FV .016 a as a E045
TPMH222FV TPMH110308-FV .031 a as a
TPMH320.5FV TPMH160302-FV .008 a as a
TPMH321FV TPMH160304-FV .016 a as a
Finish
Cutting TPMH322FV TPMH160308-FV .031 a as a
R/L FS TPGH1.51.50.5RFS TPGH080202R-FS .008 a s a
TPGH1.51.50.5LFS TPGH080202L-FS .008 a s as a
TPGH1.51.51RFS TPGH080204R-FS .016 a s a
TPGH1.51.51LFS TPGH080204L-FS .016 a s as a
TPGH1.81.50.5RFS TPGH090202R-FS .008 a s a
TPGH1.81.50.5LFS TPGH090202L-FS .008 a s as a
TPGH1.81.51RFS TPGH090204R-FS .016 a s a
TPGH1.81.51LFS TPGH090204L-FS .016 a s as a E007
TPGH220.5RFS TPGH110302R-FS .008 a s a E045
TPGH220.5LFS TPGH110302L-FS .008 a s as a
TPGH221RFS TPGH110304R-FS .016 a s a
TPGH221LFS TPGH110304L-FS .016 a s as a
TPGH321RFS TPGH160304R-FS .016 a s a
TPGH321LFS TPGH160304L-FS .016 a s a a
TPGH322RFS TPGH160308R-FS .031 a s a
Finish
Cutting TPGH322LFS TPGH160308L-FS .031 a s a a
SQ TPMT1.81.51SQ TPMT090204-SQ .016 a
TPMT21.50.5SQ TPMT110202-SQ .008 a a
TPMT21.51SQ TPMT110204-SQ .016 a a
─
TPMT21.52SQ TPMT110208-SQ .031 a a
Finish
TPMT32.51SQ TPMT16T304-SQ .016 a
Cutting TPMT32.52SQ TPMT16T308-SQ .031 a
a =
a : USA Stock s : Stocked in Japan
A176 <10 inserts in one case>
