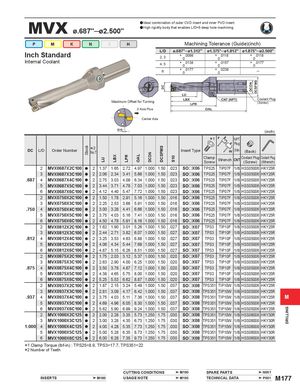

Stock LU LBX LPR OAL DCON DCDCSFMS S10 DCON DCSFMS DRILLING MVX ø.687"─ø2.500" aIdeal combination of outer CVD insert and inner PVD insert.aHigh rigidity body that enables L/D=6 deep hole machining. P M K N S H Machining Tolerance (Guide)(inch) Inch StandardInternal Coolant L/D ø.687"─ø1.312" ø1.375"─ø1.812" ø1.875"─ø2.500"2, 3+.00980+.01180+.011804, 5+.01380+.01570+.01770 6 + .01770 + .02360 ─ LU Maximum Offset for Turning LBX CNT (NPT) Coolant PlugLPR(Screw) X Axis Plus OAL Center Axis S10 (inch) *1 F NPTPlug DC L/D Order Number *2No.T Insert Type W (Side) (Back) ClampScrewWrench CNT Coolant Plug (Screw) Coolant Plug(Wrench) 2 MVX0687X2C100 a 2 1.37 1.65 2.72 4.97 1.000 1.50 .023 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 3 MVX0687X3C100 a 2 2.06 2.34 3.41 5.66 1.000 1.50 .023 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R .687 4 MVX0687X4C100 a 2 2.75 3.03 4.09 6.34 1.000 1.50 .023 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 5 MVX0687X5C100 a 2 3.44 3.71 4.78 7.03 1.000 1.50 .023 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 6 MVX0687X6C100 a 2 4.12 4.40 5.47 7.72 1.000 1.50 .023 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 2 MVX0750X2C100 a 2 1.50 1.78 2.91 5.16 1.000 1.50 .016 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 3 MVX0750X3C100 a 2 2.25 2.53 3.66 5.91 1.000 1.50 .016 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R .750 4 MVX0750X4C100 a 2 3.00 3.28 4.41 6.66 1.000 1.50 .016 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 5 MVX0750X5C100 a 2 3.75 4.03 5.16 7.41 1.000 1.50 .016 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 6 MVX0750X6C100 a 2 4.50 4.78 5.91 8.16 1.000 1.50 .016 SOoX06 TPS25 TIP07F 1/8 HSS05006 HKY25R 2 MVX0812X2C100 a 2 1.62 1.90 3.01 5.26 1.000 1.50 .027 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 3 MVX0812X3C100 a 2 2.44 2.71 3.82 6.07 1.000 1.50 .027 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R .812 4 MVX0812X4C100 a 2 3.25 3.53 4.63 6.88 1.000 1.50 .027 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 5 MVX0812X5C100 a 2 4.06 4.34 5.44 7.69 1.000 1.50 .027 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 6 MVX0812X6C100 a 2 4.87 5.15 6.26 8.51 1.000 1.50 .027 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 2 MVX0875X2C100 a 2 1.75 2.03 3.12 5.37 1.000 1.50 .020 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 3 MVX0875X3C100 a 2 2.63 2.90 4.00 6.25 1.000 1.50 .020 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R .875 4 MVX0875X4C100 a 2 3.50 3.78 4.87 7.12 1.000 1.50 .020 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 5 MVX0875X5C100 a 2 4.38 4.65 5.75 8.00 1.000 1.50 .020 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 6 MVX0875X6C100 a 2 5.25 5.53 6.62 8.87 1.000 1.50 .020 SOoX07 TPS3 TIP10F 1/8 HSS05006 HKY25R 2 MVX0937X2C100 a 2 1.87 2.15 3.24 5.49 1.000 1.50 .037 SOoX08 TPS351 TIP10W 1/8 HSS05006 HKY25R 3 MVX0937X3C100 a 2 2.81 3.09 4.17 6.42 1.000 1.50 .037 SOoX08 TPS351 TIP10W 1/8 HSS05006 HKY25R .937 4 MVX0937X4C100 a 2 3.75 4.03 5.11 7.36 1.000 1.50 .037 SOoX08 TPS351 TIP10W 1/8 HSS05006 HKY25R M 5 MVX0937X5C100 a 2 4.69 4.96 6.05 8.30 1.000 1.50 .037 SOoX08 TPS351 TIP10W 1/8 HSS05006 HKY25R 6 MVX0937X6C100 a 2 5.62 5.90 6.99 9.24 1.000 1.50 .037 SOoX08 TPS351 TIP10W 1/8 HSS05006 HKY25R 2 MVX1000X2C125 a 2 2.00 2.28 3.35 5.73 1.250 1.75 .030 SOoX08 TPS351 TIP10W 1/8 HSS06008 HKY30R 3 MVX1000X3C125 a 2 3.00 3.28 4.35 6.73 1.250 1.75 .030 SOoX08 TPS351 TIP10W 1/8 HSS06008 HKY30R 1.000 4 MVX1000X4C125 a 2 4.00 4.28 5.35 7.73 1.250 1.75 .030 SOoX08 TPS351 TIP10W 1/8 HSS06008 HKY30R 5 MVX1000X5C125 a 2 5.00 5.28 6.35 8.73 1.250 1.75 .030 SOoX08 TPS351 TIP10W 1/8 HSS06008 HKY30R 6 MVX1000X6C125 a 2 6.00 6.28 7.35 9.73 1.250 1.75 .030 SOoX08 TPS351 TIP10W 1/8 HSS06008 HKY30R **21 Clamp Torque (lbf-in) Number of Teeth : TPS25=8.9, TPS3=17.7, TPS351=22 CUTTING CONDITIONS M190 SPARE PARTS N001 INSERTS M180 USAGE NOTE M195 TECHNICAL DATA P001 M177
