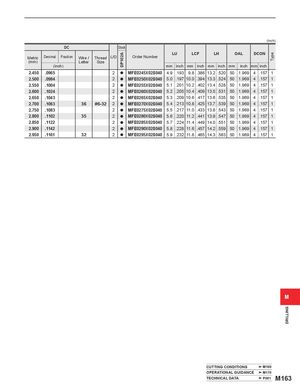

DP102A Type DRILLING (inch) DC Stock Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL DCON (mm) Letter Size (inch) mm inch mm inch mm inch mm inch mm inch 2.450 .0965 2 a MFE0245X02S040 4.9 .193 9.8 .386 13.2 .520 50 1.969 4 .157 1 2.500 .0984 2 a MFE0250X02S040 5.0 .197 10.0 .394 13.3 .524 50 1.969 4 .157 1 2.550 .1004 2 a MFE0255X02S040 5.1 .201 10.2 .402 13.4 .528 50 1.969 4 .157 1 2.600 .1024 2 a MFE0260X02S040 5.2 .205 10.4 .409 13.5 .531 50 1.969 4 .157 1 2.650 .1043 2 a MFE0265X02S040 5.3 .209 10.6 .417 13.6 .535 50 1.969 4 .157 1 2.700 .1063 36 #6-32 2 a MFE0270X02S040 5.4 .213 10.8 .425 13.7 .539 50 1.969 4 .157 1 2.750 .1083 2 a MFE0275X02S040 5.5 .217 11.0 .433 13.8 .543 50 1.969 4 .157 1 2.800 .1102 35 2 a MFE0280X02S040 5.6 .220 11.2 .441 13.9 .547 50 1.969 4 .157 1 2.850 .1122 2 a MFE0285X02S040 5.7 .224 11.4 .449 14.0 .551 50 1.969 4 .157 1 2.900 .1142 2 a MFE0290X02S040 5.8 .228 11.6 .457 14.2 .559 50 1.969 4 .157 1 2.950 .1161 32 2 a MFE0295X02S040 5.9 .232 11.8 .465 14.3 .563 50 1.969 4 .157 1 M CUTTING CONDITIONS M169 OPERATIONAL GUIDANCE M170 TECHNICAL DATA P001 M163
