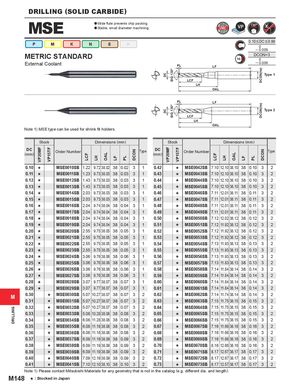

DRILLING VP20MF VP15TF LCF LH OAL LF PL DCON DCDC VP20MF SIG 130°SIG 130° VP15TF LCF LH OAL LF PL DCON(h6)DCON(h6)DCON DRILLING (SOLID CARBIDE) MSE aWide flute prevents chip packing.aStable, small diameter machining. P M K N S H 0.10 < DC < 0.990 ─ 0.009 METRIC STANDARD DCON=30 External Coolant ─ 0.006PLLF Type 1 LCF LH OAL PL LF Type 2 LCF LH OAL Note 1) MSE type can be used for shrink fit holders. Stock Dimensions (mm) Stock Dimensions (mm) DC(mm) Order Number Type DC(mm) Order Number Type 0.10 s MSE0010SB 1.22 9.72 38.02 38 0.02 3 1 0.42 s MSE0042SB 7.10 12.10 38.10 38 0.10 3 2 0.11 s MSE0011SB 1.23 9.73 38.03 38 0.03 3 1 0.43 s MSE0043SB 7.10 12.10 38.10 38 0.10 3 2 0.12 s MSE0012SB 1.43 9.73 38.03 38 0.03 3 1 0.44 s MSE0044SB 7.10 12.10 38.10 38 0.10 3 2 0.13 s MSE0013SB 1.43 9.73 38.03 38 0.03 3 1 0.45 s MSE0045SB 7.10 12.10 38.10 38 0.10 3 2 0.14 s MSE0014SB 2.03 9.73 38.03 38 0.03 3 1 0.46 s MSE0046SB 7.11 12.01 38.11 38 0.11 3 2 0.15 s MSE0015SB 2.03 9.73 38.03 38 0.03 3 1 0.47 s MSE0047SB 7.11 12.01 38.11 38 0.11 3 2 0.16 s MSE0016SB 2.04 9.74 38.04 38 0.04 3 1 0.48 s MSE0048SB 7.11 12.01 38.11 38 0.11 3 2 0.17 s MSE0017SB 2.04 9.74 38.04 38 0.04 3 1 0.49 s MSE0049SB 7.11 12.01 38.11 38 0.11 3 2 0.18 s MSE0018SB 2.04 9.74 38.04 38 0.04 3 1 0.50 s MSE0050SB 7.12 12.02 38.12 38 0.12 3 2 0.19 s MSE0019SB 2.04 9.74 38.04 38 0.04 3 1 0.51 s MSE0051SB 7.12 11.92 38.12 38 0.12 3 2 0.20 s MSE0020SB 2.55 9.75 38.05 38 0.05 3 1 0.52 s MSE0052SB 7.12 11.92 38.12 38 0.12 3 2 0.21 s MSE0021SB 2.55 9.75 38.05 38 0.05 3 1 0.53 s MSE0053SB 7.12 11.92 38.12 38 0.12 3 2 0.22 s MSE0022SB 2.55 9.75 38.05 38 0.05 3 1 0.54 s MSE0054SB 7.13 11.93 38.13 38 0.13 3 2 0.23 s MSE0023SB 2.55 9.75 38.05 38 0.05 3 1 0.55 s MSE0055SB 7.13 11.93 38.13 38 0.13 3 2 0.24 s MSE0024SB 3.06 9.76 38.06 38 0.06 3 1 0.56 s MSE0056SB 7.13 11.93 38.13 38 0.13 3 2 0.25 s MSE0025SB 3.06 9.76 38.06 38 0.06 3 1 0.57 s MSE0057SB 7.13 11.83 38.13 38 0.13 3 2 0.26 s MSE0026SB 3.06 9.76 38.06 38 0.06 3 1 0.58 s MSE0058SB 7.14 11.84 38.14 38 0.14 3 2 0.27 s MSE0027SB 3.06 9.76 38.06 38 0.06 3 1 0.59 s MSE0059SB 7.14 11.84 38.14 38 0.14 3 2 0.28 s MSE0028SB 3.07 9.77 38.07 38 0.07 3 1 0.60 s MSE0060SB 7.14 11.84 38.14 38 0.14 3 2 0.29 s MSE0029SB 3.07 9.77 38.07 38 0.07 3 1 0.61 s MSE0061SB 7.14 11.84 38.14 38 0.14 3 2 M 0.30 s MSE0030SB 5.07 10.27 38.07 38 0.07 3 2 0.62 s MSE0062SB 7.14 11.74 38.14 38 0.14 3 2 0.31 s MSE0031SB 5.07 10.27 38.07 38 0.07 3 2 0.63 s MSE0063SB 7.15 11.75 38.15 38 0.15 3 2 0.32 s MSE0032SB 5.07 10.27 38.07 38 0.07 3 2 0.64 s MSE0064SB 7.15 11.75 38.15 38 0.15 3 2 0.33 s MSE0033SB 5.08 10.28 38.08 38 0.08 3 2 0.65 s MSE0065SB 7.15 11.75 38.15 38 0.15 3 2 0.34 s MSE0034SB 6.08 11.28 38.08 38 0.08 3 2 0.66 s MSE0066SB 7.15 11.75 38.15 38 0.15 3 2 0.35 s MSE0035SB 6.08 11.18 38.08 38 0.08 3 2 0.67 s MSE0067SB 7.16 11.66 38.16 38 0.16 3 2 0.36 s MSE0036SB 6.08 11.18 38.08 38 0.08 3 2 0.68 s MSE0068SB 7.16 11.66 38.16 38 0.16 3 2 0.37 s MSE0037SB 6.09 11.19 38.09 38 0.09 3 2 0.69 s MSE0069SB 7.16 11.66 38.16 38 0.16 3 2 0.38 s MSE0038SB 6.09 11.19 38.09 38 0.09 3 2 0.70 s MSE0070SB 8.16 12.66 38.16 38 0.16 3 2 0.39 s MSE0039SB 6.09 11.19 38.09 38 0.09 3 2 0.71 s MSE0071SB 8.17 12.67 38.17 38 0.17 3 2 0.40 s MSE0040SB 7.09 12.19 38.09 38 0.09 3 2 0.72 s MSE0072SB 8.17 12.67 38.17 38 0.17 3 2 0.41 s MSE0041SB 7.10 12.10 38.10 38 0.10 3 2 0.73 s MSE0073SB 8.17 12.57 38.17 38 0.17 3 2 Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length). M148 s : Stocked in Japan
