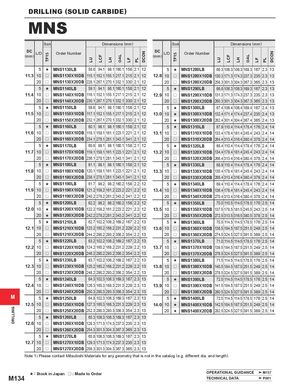

DRILLING TF15 LU LCF LH OAL LF PL DCON TF15 LU LCF LH OAL LF PL DCON DRILLING (SOLID CARBIDE) MNS Stock Dimensions (mm) Stock Dimensions (mm) DC (mm) L/D Order Number DC (mm) L/D Order Number 5 s MNS1130LB 58.6 94.1 98.1 160.1 158 2.1 12 5 s MNS1280LB 66.3 106.3 106.3 169.3 167 2.3 13 11.3 10 r MNS1130X10DB 115.1 152.1 155.1 217.1 215 2.1 12 12.8 10 r MNS1280X10DB 130.3 171.3 174.3 237.3 235 2.3 13 20 r MNS1130X20DB 228.1 267.1 270.1 332.1 330 2.1 12 20 r MNS1280X20DB 258.3 301.3 304.3 367.3 365 2.3 13 5 s MNS1140LB 59.1 94.1 98.1 160.1 158 2.1 12 5 s MNS1290LB 66.8 106.3 106.3 169.3 167 2.3 13 11.4 10 r MNS1140X10DB 116.1 152.1 155.1 217.1 215 2.1 12 12.9 10 r MNS1290X10DB 131.3 171.3 174.3 237.3 235 2.3 13 20 r MNS1140X20DB 230.1 267.1 270.1 332.1 330 2.1 12 20 r MNS1290X20DB 260.3 301.3 304.3 367.3 365 2.3 13 5 s MNS1150LB 59.6 94.1 98.1 160.1 158 2.1 12 5 s MNS1300LB 67.4 106.4 106.4 169.4 167 2.4 13 11.5 10 r MNS1150X10DB 117.1 152.1 155.1 217.1 215 2.1 12 13.0 10 s MNS1300X10DB 132.4 171.4 174.4 237.4 235 2.4 13 20 r MNS1150X20DB 232.1 267.1 270.1 332.1 330 2.1 12 20 s MNS1300X20DB 262.4 301.4 304.4 367.4 365 2.4 13 5 s MNS1160LB 60.1 98.1 98.1 160.1 158 2.1 12 5 s MNS1310LB 67.9 110.4 114.4 178.4 176 2.4 14 11.6 10 r MNS1160X10DB 118.1 158.1 161.1 223.1 221 2.1 12 13.1 10 r MNS1310X10DB 133.4 178.4 181.4 245.4 243 2.4 14 20 r MNS1160X20DB 234.1 278.1 281.1 343.1 341 2.1 12 20 r MNS1310X20DB 264.4 313.4 316.4 380.4 378 2.4 14 5 s MNS1170LB 60.6 98.1 98.1 160.1 158 2.1 12 5 s MNS1320LB 68.4 110.4 114.4 178.4 176 2.4 14 11.7 10 r MNS1170X10DB 119.1 158.1 161.1 223.1 221 2.1 12 13.2 10 r MNS1320X10DB 134.4 178.4 181.4 245.4 243 2.4 14 20 r MNS1170X20DB 236.1 278.1 281.1 343.1 341 2.1 12 20 r MNS1320X20DB 266.4 313.4 316.4 380.4 378 2.4 14 5 s MNS1180LB 61.1 98.1 98.1 160.1 158 2.1 12 5 s MNS1330LB 68.9 110.4 114.4 178.4 176 2.4 14 11.8 10 r MNS1180X10DB 120.1 158.1 161.1 223.1 221 2.1 12 13.3 10 r MNS1330X10DB 135.4 178.4 181.4 245.4 243 2.4 14 20 r MNS1180X20DB 238.1 278.1 281.1 343.1 341 2.1 12 20 r MNS1330X20DB 268.4 313.4 316.4 380.4 378 2.4 14 5 s MNS1190LB 61.7 98.2 98.2 160.2 158 2.2 12 5 s MNS1340LB 69.4 110.4 114.4 178.4 176 2.4 14 11.9 10 r MNS1190X10DB 121.2 158.2 161.2 223.2 221 2.2 12 13.4 10 r MNS1340X10DB 136.4 178.4 181.4 245.4 243 2.4 14 20 r MNS1190X20DB 240.2 278.2 281.2 343.2 341 2.2 12 20 r MNS1340X20DB 270.4 313.4 316.4 380.4 378 2.4 14 5 s MNS1200LB 62.2 98.2 98.2 160.2 158 2.2 12 5 s MNS1350LB 70.0 110.5 114.5 178.5 176 2.5 14 12.0 10 s MNS1200X10DB 122.2 158.2 161.2 223.2 221 2.2 12 13.5 10 r MNS1350X10DB 137.5 178.5 181.5 245.5 243 2.5 14 20 s MNS1200X20DB 242.2 278.2 281.2 343.2 341 2.2 12 20 r MNS1350X20DB 272.5 313.5 316.5 380.5 378 2.5 14 5 s MNS1210LB 62.7 102.2 106.2 169.2 167 2.2 13 5 s MNS1360LB 70.5 114.5 114.5 178.5 176 2.5 14 12.1 10 r MNS1210X10DB 123.2 165.2 168.2 231.2 229 2.2 13 13.6 10 r MNS1360X10DB 138.5 184.5 187.5 251.5 249 2.5 14 20 r MNS1210X20DB 244.2 290.2 293.2 356.2 354 2.2 13 20 r MNS1360X20DB 274.5 324.5 327.5 391.5 389 2.5 14 5 s MNS1220LB 63.2 102.2 106.2 169.2 167 2.2 13 5 s MNS1370LB 71.0 114.5 114.5 178.5 176 2.5 14 12.2 10 r MNS1220X10DB 124.2 165.2 168.2 231.2 229 2.2 13 13.7 10 r MNS1370X10DB 139.5 184.5 187.5 251.5 249 2.5 14 20 r MNS1220X20DB 246.2 290.2 293.2 356.2 354 2.2 13 20 r MNS1370X20DB 276.5 324.5 327.5 391.5 389 2.5 14 5 s MNS1230LB 63.7 102.2 106.2 169.2 167 2.2 13 5 s MNS1380LB 71.5 114.5 114.5 178.5 176 2.5 14 12.3 10 r MNS1230X10DB 125.2 165.2 168.2 231.2 229 2.2 13 13.8 10 r MNS1380X10DB 140.5 184.5 187.5 251.5 249 2.5 14 20 r MNS1230X20DB 248.2 290.2 293.2 356.2 354 2.2 13 20 r MNS1380X20DB 278.5 324.5 327.5 391.5 389 2.5 14 5 s MNS1240LB 64.3 102.3 106.3 169.3 167 2.3 13 5 s MNS1390LB 72.0 114.5 114.5 178.5 176 2.5 14 12.4 10 r MNS1240X10DB 126.3 165.3 168.3 231.3 229 2.3 13 13.9 10 r MNS1390X10DB 141.5 184.5 187.5 251.5 249 2.5 14 20 r MNS1240X20DB 250.3 290.3 293.3 356.3 354 2.3 13 20 r MNS1390X20DB 280.5 324.5 327.5 391.5 389 2.5 14 M 5 s MNS1250LB 64.8 102.3 106.3 169.3 167 2.3 13 5 s MNS1400LB 72.5 114.5 114.5 178.5 176 2.5 14 12.5 10 r MNS1250X10DB 127.3 165.3 168.3 231.3 229 2.3 13 14.0 10 s MNS1400X10DB 142.5 184.5 187.5 251.5 249 2.5 14 20 r MNS1250X20DB 252.3 290.3 293.3 356.3 354 2.3 13 20 s MNS1400X20DB 282.5 324.5 327.5 391.5 389 2.5 14 5 s MNS1260LB 65.3 106.3 106.3 169.3 167 2.3 13 12.6 10 r MNS1260X10DB 128.3 171.3 174.3 237.3 235 2.3 13 20 r MNS1260X20DB 254.3 301.3 304.3 367.3 365 2.3 13 5 s MNS1270LB 65.8 106.3 106.3 169.3 167 2.3 13 12.7 10 r MNS1270X10DB 129.3 171.3 174.3 237.3 235 2.3 13 20 r MNS1270X20DB 256.3 301.3 304.3 367.3 365 2.3 13 Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length). s : Stock in Japan r : Made to Order OPERATIONAL GUIDANCE M137 M134 TECHNICAL DATA P001
