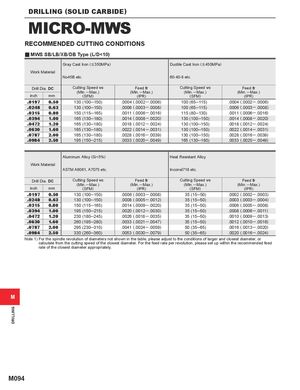

DRILLING (SOLID CARBIDE) MICRO-MWS RECOMMENDED CUTTING CONDITIONS y MWS SB/LB/XB/DB Type (L/D<10) Gray Cast Iron ( < 350MPa) Ductile Cast Iron ( < 450MPa) Work Material No45B etc. 60-40-8 etc. Drill Dia. DC Cutting Speed vc Feed fr Cutting Speed vc Feed fr (Min. ─ Max.) (Min. ─ Max.) (Min. ─ Max.) (Min. ─ Max.) inch mm (SFM) (IPR) (SFM) (IPR) .0197 0.50 130 (100─150) .0004 (.0002 ─ .0006) 100 (65─115) .0004 (.0002 ─ .0006) .0248 0.63 130 (100─150) .0006 (.0003 ─ .0008) 100 (65─115) .0006 (.0003 ─ .0008) .0315 0.80 150 (115─165) .0011 (.0006 ─ .0016) 115 (80─130) .0011 (.0006 ─ .0016) .0394 1.00 165 (130─180) .0014 (.0008 ─ .0020) 130 (100─150) .0014 (.0008 ─ .0020) .0472 1.20 165 (130─180) .0018 (.0012 ─ .0024) 130 (100─150) .0018 (.0012 ─ .0024) .0630 1.60 165 (130─180) .0022 (.0014 ─ .0031) 130 (100─150) .0022 (.0014 ─ .0031) .0787 2.00 165 (130─180) .0028 (.0016 ─ .0039) 130 (100─150) .0028 (.0016 ─ .0039) .0984 2.50 195 (150─215) .0033 (.0020 ─ .0049) 165 (130─180) .0033 (.0020 ─ .0049) Aluminum Alloy (Si<5%) Heat Resistant Alloy Work Material ASTM A6061, A7075 etc. Inconel718 etc. Drill Dia. DC Cutting Speed vc Feed fr Cutting Speed vc Feed fr (Min. ─ Max.) (Min. ─ Max.) (Min. ─ Max.) (Min. ─ Max.) inch mm (SFM) (IPR) (SFM) (IPR) .0197 0.50 130 (100─150) .0006 (.0003 ─ .0008) 35 (15─50) .0002 (.0002 ─ .0003) .0248 0.63 130 (100─150) .0008 (.0005 ─ .0012) 35 (15─50) .0003 (.0003 ─ .0004) .0315 0.80 150 (115─165) .0014 (.0009 ─ .0020) 35 (15─50) .0006 (.0005 ─ .0008) .0394 1.00 195 (150─215) .0020 (.0012 ─ .0030) 35 (15─50) .0008 (.0006 ─ .0011) .0472 1.20 230 (180─245) .0026 (.0018 ─ .0035) 35 (15─50) .0010 (.0009 ─ .0013) .0630 1.60 260 (195─280) .0033 (.0021 ─ .0047) 35 (15─50) .0012 (.0010 ─ .0016) .0787 2.00 295 (230─310) .0041 (.0024 ─ .0059) 50 (35─65) .0016 (.0013 ─ .0020) .0984 2.50 330 (260─360) .0053 (.0030 ─ .0079) 50 (35─65) .0020 (.0016 ─ .0024) Note 1) For the spindle revolution of diameters not shown in the table, please adjust to the conditions of larger and closest diameter, or calculate from the cutting speed of the closest diameter. For the feed rate per revolution, please set up within the recommended feed rate of the closest diameter appropriately. M M094 DRILLING
