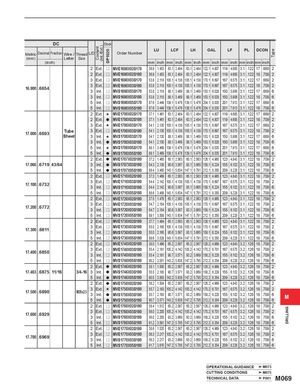

Общий каталог Mitsubishi 2020 - 2021 - страница 1542

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

Coolant (Int./Ext.) DP1020 Type DRILLING DC Stock Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL LF PL DCON (mm) Letter Size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch 2 Ext. r MVE1690X02S170 36.9 1.453 63.1 2.484 63.1 2.484 122.1 4.807 119 4.685 3.1 .122 17 .669 2 2 Ext. r MVE1690X02S180 36.9 1.453 63.1 2.484 63.1 2.484 122.1 4.807 119 4.685 3.1 .122 18 .709 2 3 Ext. r MVE1690X03S170 53.8 2.118 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 17 .669 2 16.900 .6654 3 Ext. r MVE1690X03S180 53.8 2.118 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 18 .709 23Int.rMVS1690X03S17053.82.11888.13.46988.13.469153.16.0281505.9063.1.12217.6696 3 Int. r MVS1690X03S180 53.8 2.118 88.1 3.469 88.1 3.469 153.1 6.028 150 5.906 3.1 .122 18 .709 6 5 Int. r MVS1690X05S170 87.6 3.449 139.1 5.476 139.1 5.476 204.1 8.035 201 7.913 3.1 .122 17 .669 6 5 Int. r MVS1690X05S180 87.6 3.449 139.1 5.476 139.1 5.476 204.1 8.035 201 7.913 3.1 .122 18 .709 6 2 Ext. s MVE1700X02S170 37.1 1.461 63.1 2.484 63.1 2.484 122.1 4.807 119 4.685 3.1 .122 17 .669 2 2 Ext. a MVE1700X02S180 37.1 1.461 63.1 2.484 63.1 2.484 122.1 4.807 119 4.685 3.1 .122 18 .709 2 3 Ext. s MVE1700X03S170 54.1 2.130 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 17 .669 2 17.000 .6693 TubeSheet 3 Ext. r MVE1700X03S180 54.1 2.130 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 18 .709 23Int.sMVS1700X03S17054.12.13088.13.46988.13.469153.16.0281505.9063.1.12217.6696 3 Int. a MVS1700X03S180 54.1 2.130 88.1 3.469 88.1 3.469 153.1 6.028 150 5.906 3.1 .122 18 .709 6 5 Int. s MVS1700X05S170 88.1 3.469 139.1 5.476 139.1 5.476 204.1 8.035 201 7.913 3.1 .122 17 .669 6 5 Int. a MVS1700X05S180 88.1 3.469 139.1 5.476 139.1 5.476 204.1 8.035 201 7.913 3.1 .122 18 .709 6 2 Ext. a MVE1707X02S180 37.2 1.465 65.1 2.563 65.1 2.563 126.1 4.965 123 4.843 3.1 .122 18 .709 2 17.066 .6719 43/64 3 Int. a MVS1707X03S180 54.3 2.138 90.6 3.567 93.1 3.665 158.1 6.224 155 6.102 3.1 .122 18 .709 6 5 Int. a MVS1707X05S180 88.4 3.480 143.1 5.634 147.1 5.791 212.1 8.350 209 8.228 3.1 .122 18 .709 6 2 Ext. r MVE1710X02S180 37.3 1.469 65.1 2.563 65.1 2.563 126.1 4.965 123 4.843 3.1 .122 18 .709 2 17.100 .6732 3 Ext. r MVE1710X03S180 54.4 2.142 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 18 .709 23Int.rMVS1710X03S18054.42.14290.63.56793.13.665158.16.2241556.1023.1.12218.7096 5 Int. r MVS1710X05S180 88.6 3.488 143.1 5.634 147.1 5.791 212.1 8.350 209 8.228 3.1 .122 18 .709 6 2 Ext. r MVE1720X02S180 37.5 1.476 65.1 2.563 65.1 2.563 126.1 4.965 123 4.843 3.1 .122 18 .709 2 17.200 .6772 3 Ext. r MVE1720X03S180 54.7 2.154 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 18 .709 23Int.rMVS1720X03S18054.72.15490.63.56793.13.665158.16.2241556.1023.1.12218.7096 5 Int. r MVS1720X05S180 89.1 3.508 143.1 5.634 147.1 5.791 212.1 8.350 209 8.228 3.1 .122 18 .709 6 2 Ext. r MVE1730X02S180 37.7 1.484 65.1 2.563 65.1 2.563 126.1 4.965 123 4.843 3.1 .122 18 .709 2 17.300 .6811 3 Ext. r MVE1730X03S180 55.0 2.165 105.1 4.138 105.1 4.138 170.1 6.697 167 6.575 3.1 .122 18 .709 23Int.rMVS1730X03S18055.02.16590.63.56793.13.665158.16.2241556.1023.1.12218.7096 5 Int. r MVS1730X05S180 89.6 3.528 143.1 5.634 147.1 5.791 212.1 8.350 209 8.228 3.1 .122 18 .709 6 2 Ext. r MVE1740X02S180 38.0 1.496 65.2 2.567 65.2 2.567 126.2 4.969 123 4.843 3.2 .126 18 .709 2 17.400 .6850 3 Ext. r MVE1740X03S180 55.4 2.181 105.2 4.142 105.2 4.142 170.2 6.701 167 6.575 3.2 .126 18 .709 23Int.rMVS1740X03S18055.42.18190.73.57193.23.669158.26.2281556.1023.2.12618.7096 5 Int. r MVS1740X05S180 90.2 3.551 143.2 5.638 147.2 5.795 212.2 8.354 209 8.228 3.2 .126 18 .709 6 2 Ext. a MVE1746X02S180 38.1 1.500 65.2 2.567 65.2 2.567 126.2 4.969 123 4.843 3.2 .126 18 .709 2 17.463 .6875 11/16 3/4-16 3 Int. a MVS1746X03S180 55.5 2.185 90.7 3.571 93.2 3.669 158.2 6.228 155 6.102 3.2 .126 18 .709 6 5 Int. a MVS1746X05S180 90.5 3.563 143.2 5.638 147.2 5.795 212.2 8.354 209 8.228 3.2 .126 18 .709 6 2 Ext. a MVE1750X02S180 38.2 1.504 65.2 2.567 65.2 2.567 126.2 4.969 123 4.843 3.2 .126 18 .709 2 17.500 .6890 M20x2.5 33 Ext.Int. sa MVE1750X03S180MVS1750X03S18055.72.193105.24.142105.24.142170.26.7011676.5753.2 .126 18 .709 255.72.19390.73.57193.23.669158.26.2281556.1023.2.12618.70965Int.aMVS1750X05S18090.73.571143.25.638147.25.795212.28.3542098.2283.2.12618.7096M 2 Ext. r MVE1760X02S180 38.4 1.512 65.2 2.567 65.2 2.567 126.2 4.969 123 4.843 3.2 .126 18 .709 2 17.600 .6929 3 Ext. r MVE1760X03S180 56.0 2.205 105.2 4.142 105.2 4.142 170.2 6.701 167 6.575 3.2 .126 18 .709 23Int.rMVS1760X03S18056.02.20593.23.66993.23.669158.26.2281556.1023.2.12618.7096 5 Int. r MVS1760X05S180 91.2 3.591 147.2 5.795 147.2 5.795 212.2 8.354 209 8.228 3.2 .126 18 .709 6 2 Ext. r MVE1770X02S180 38.6 1.520 65.2 2.567 65.2 2.567 126.2 4.969 123 4.843 3.2 .126 18 .709 2 17.700 .6969 3 Ext. r MVE1770X03S180 56.3 2.217 105.2 4.142 105.2 4.142 170.2 6.701 167 6.575 3.2 .126 18 .709 23Int.rMVS1770X03S18056.32.21793.23.66993.23.669158.26.2281556.1023.2.12618.7096 5 Int. r MVS1770X05S180 91.7 3.610 147.2 5.795 147.2 5.795 212.2 8.354 209 8.228 3.2 .126 18 .709 6 OPERATIONAL GUIDANCE M073 CUTTING CONDITIONS M075 TECHNICAL DATA P001 M069
