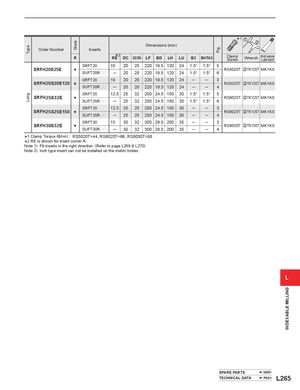

| Type Order Number | Stock | Inserts | 2 | Dim | ension | s (mm | ) | Fig. | 1 Cl | z x | Atii | ||||
| R | RE | DC | DCON | LF | BD | LH | LU | B2 | BHTA3 | amp Screw | Wrench | n-seze Lubricant | |||
| SRFH20S25E | s | SRFT20 | 10 | 20 | 25 | 220 | 19.5 | 120 | 24 | 1.5° | 1.5° | 5 | RS5020T | xTKY20T | MK1KS |
| SUFT20Rpp | ─ | 20 | 25 | 220 | 19.5 | 120 | 24 | 1.5° | 1.5° | 6 | |||||
| SRFH20S20E120 | s | SRFT20 | 10 | 20 | 20 | 220 | 19.5 | 120 | 24 | ─ | ─ | 3 | RS5020T | xTKY20T | MK1KS |
| SUFT20Rpp | ─ | 20 | 20 | 220 | 19.5 | 120 | 24 | ─ | ─ | 4 | |||||
| SRFH25S32E ng | s | SRFT25 | 12.5 | 25 | 32 | 250 | 24.5 | 150 | 30 | 1.5° | 1.5° | 5 | RS6025T | xTKY25T | MK1KS |
| Lo | SUFT25Rpp | ─ | 25 | 32 | 250 | 24.5 | 150 | 30 | 1.5° | 1.5° | 6 | ||||
| SRFH25S25E150 | s | SRFT25 | 12.5 | 25 | 25 | 250 | 24.5 | 150 | 30 | ─ | ─ | 3 | RS6025T | xTKY25T | MK1KS |
| SUFT25Rpp | ─ | 25 | 25 | 250 | 24.5 | 150 | 30 | ─ | ─ | 4 | |||||
| SRFH30S32E | s | SRFT30 | 15 | 30 | 32 | 300 | 29.5 | 200 | 35 | ─ | ─ | 3 | RS8030T | xTKY30T | MK1KS |
| SUFT30Rpp | ─ | 30 | 32 | 300 | 29.5 | 200 | 35 | ─ | ─ | 4 |
*1 Clamp Torque (lbf-in) : RS5020T=44, RS6025T=66, RS8030T=88
*2 RE is shown for insert corner R. Note 1) Fit inserts in the right direction. (Refer to page L269 & L270) Note 2) Inch type insert can not be installed on the metric holder.
