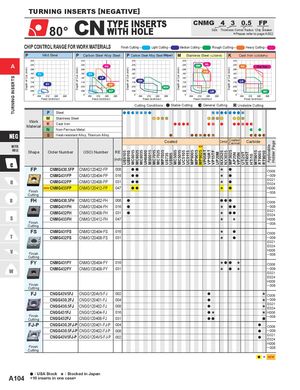

TURNING INSERTS [NEGATIVE] 80° CN TYPE INSERTS WITH HOLE CNMG 4 3 0.5 Size Thickness Corner Radius Chip Breaker * Please refer to page A002. FP CHIP CONTROL RANGE FOR WORK MATERIALS Finish Cutting Light Cutting Medium Cutting Rough Cutting Heavy Cutting Mild Steel Carbon Steel·Alloy Steel Carbon Steel·Alloy Steel (Wiper) Stainless Steel (<200HB) Cast Iron (<350MPa) HL A HX MM RK Flat Top Depth of Cut (inch) Depth of Cut (inch) Depth of Cut (inch) Depth of Cut (inch) Depth of Cut (inch) RM FY FP TURNING INSERTS LP SW LK SY RP MW MP LM MK Feed (inch/rev) Feed (inch/rev) Feed (inch/rev) Feed (inch/rev) Feed (inch/rev) Cutting Conditions : Stable Cutting General Cutting Unstable Cutting P Steel M Stainless Steel Work K Cast Iron Material N Non-Ferrous Metal NEG S Heat-resistant Alloy, Titanium Alloy Coated Coated Cermet Cermet Carbide Holder Page WITH Applicable HOLE Shape Order Number (ISO) Number RE MC6015 MC6025 MC6035 MC7015 MC7025 MC5005 MC5015 VP05RT VP10RT MS6015 MP7035 MP9005 MP9015 MP9025 MP3025 UH6400 UC5105 VP15TF MT9015 UE6105 UC5115 NX2525 NX3035 UE6110 RT9005 RT9010 UP20M UTi20T HTi05T AP25N VP25N US735 US905 HTi10 (inch) FP CNMG430.5FP CNMG120402-FP .008 a a s a C006 CNMG431FP CNMG120404-FP .016 a a s a ─ 009 E021 CNMG432FP CNMG120408-FP .031 a a s a E024 CNMG433FP CNMG120412-FP .047 a a s a H006 Finish ─008 Cutting FH CNMG430.5FH CNMG120402-FH .008 a aa a C006 CNMG431FH CNMG120404-FH .016 a s a a ─ 009 E021 CNMG432FH CNMG120408-FH .031 a s a a E024 CNMG433FH CNMG120412-FH .047 s s H006 Finish ─008 Cutting FS CNMG431FS CNMG120404-FS .016 s a C006 CNMG432FS CNMG120408-FS .031 s a ─ 009 E021 E024 H006 Finish ─008 Cutting FY CNMG431FY CNMG120404-FY .016 sa a s C006 CNMG432FY CNMG120408-FY .031 s a s ─ 009 E021 E024 H006 Finish ─008 Cutting FJ CNGG43V5FJ CNGG1204V5-FJ .002 a s C006 CNGG430.2FJ CNGG120401-FJ .004 a s ─ 009 E021 CNGG430.5FJ CNGG120402-FJ .008 a s E024 CNGG431FJ CNGG120404-FJ .016 as s H006 Finish ─008 Cutting CNGG432FJ CNGG120408-FJ .031 a a a FJ-P CNGG430.2FJ-P CNGG120401-FJ-P .004 a C006 CNGG430.5FJ-P CNGG120402-FJ-P .008 a ─ 009 E021 CNGG43V5FJ-P CNGG1204V5-FJ-P .002 a E024 H006 Finish ─008 Cutting a = a : USA Stock s : Stocked in Japan A104 <10 inserts in one case>
