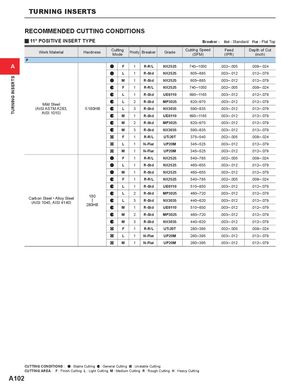

TURNING INSERTS RECOMMENDED CUTTING CONDITIONS y 11° POSITIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top Cutting Cutting Speed Feed Depth of Cut Work Material Hardness Priority Breaker Grade Mode (SFM) (IPR) (inch) P A F 1 R-R/L NX2525 740─1050 .002─.005 .008─.024 L 1 R-Std NX2525 605─885 .003─.012 .012─.079 TURNING INSERTS M 1 R-Std NX2525 605─885 .003─.012 .012─.079 F 1 R-R/L NX2525 740─1050 .002─.005 .008─.024 L 1 R-Std UE6110 690─1165 .003─.012 .012─.079 L 2 R-Std MP3025 620─970 .003─.012 .012─.079 Mild Steel (AISI ASTM A283, < 180HB L 3 R-Std NX3035 590─835 .003─.012 .012─.079 AISI 1010) M 1 R-Std UE6110 690─1165 .003─.012 .012─.079 M 2 R-Std MP3025 620─970 .003─.012 .012─.079 M 3 R-Std NX3035 590─835 .003─.012 .012─.079 F 1 R-R/L UTi20T 375─540 .002─.005 .008─.024 L 1 N-Flat UP20M 345─525 .003─.012 .012─.079 M 1 N-Flat UP20M 345─525 .003─.012 .012─.079 F 1 R-R/L NX2525 540─785 .002─.005 .008─.024 L 1 R-Std NX2525 460─655 .003─.012 .012─.079 M 1 R-Std NX2525 460─655 .003─.012 .012─.079 F 1 R-R/L NX2525 540─785 .002─.005 .008─.024 L 1 R-Std UE6110 510─850 .003─.012 .012─.079 L 2 R-Std MP3025 460─720 .003─.012 .012─.079 180 Carbon Steel • Alloy Steel | L 3 R-Std NX3035 440─620 .003─.012 .012─.079 (AISI 1045, AISI 4140) 280HB M 1 R-Std UE6110 510─850 .003─.012 .012─.079 M 2 R-Std MP3025 460─720 .003─.012 .012─.079 M 3 R-Std NX3035 440─620 .003─.012 .012─.079 F 1 R-R/L UTi20T 280─395 .002─.005 .008─.024 L 1 N-Flat UP20M 260─395 .003─.012 .012─.079 M 1 N-Flat UP20M 260─395 .003─.012 .012─.079 CUTTING CONDITIONS : : Stable Cutting : General Cutting : Unstable Cutting CUTTING AREA : F : Finish Cutting L : Light Cutting M : Medium Cutting R : Rough Cutting H : Heavy Cutting A102
