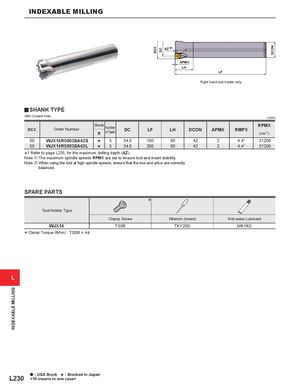

Общий каталог Mitsubishi 2020 - 2021 - страница 1405
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
*1
DC AZ
APMX LH
LF Right hand tool holder only.
y SHANK TYPE
| ooa | oe | (mm) | ||||||||
| DCX | Order Number | R Stock | Number of Teeth | DC | LF | LH | DCON | APMX | RMPX | RPMX (min-1) |
| 50 | WJX14R5003SA42S | s | 3 | 34.5 | 150 | 50 | 42 | 2 | 4.4° | 21200 |
| 50 | WJX14R5003SA42L | s | 3 | 34.5 | 250 | 50 | 42 | 2 | 4.4° | 21200 |
*1 Refer to page L235, for the maximum drilling depth (AZ). Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced.
SPARE PARTS
Tool Holder Type
Clamp Screw Wrench (Insert) Anti-seize Lubricant
WJX14 TS5R TKY20D MK1KS
* Clamp Torque (lbf-in) : TS5R = 44
