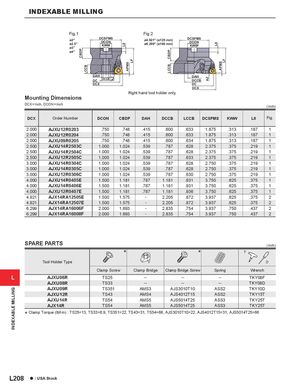

INDEXABLE MILLING Fig.1 Fig.2 DCSFMS ø4.921" (ø125 mm) DCSFMS ø2" DCON DCON ø2.5" ø6.299" (ø160 mm) L8 L8 KWW KWW ø3" CBDP ø4" CBDP LF LF APMX APMX LCCB LCCB DAH DAH AZ AZ DC DCCB DCCB DCX DC DCX Right hand tool holder only. Mounting Dimensions DCX = Inch, DCON = Inch ( inch) DCX Order Number DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 Fig. 2.000 AJXU12R0203 .750 .748 .415 .600 .633 1.875 .313 .187 1 2.000 AJXU12R0204 .750 .748 .415 .600 .633 1.875 .313 .187 1 2.000 AJXU09R0205 .750 .748 .415 .600 .634 1.875 .313 .187 1 2.500 AJXU14R2503C 1.000 1.024 .539 .787 .628 2.375 .375 .219 1 2.500 AJXU14R2504C 1.000 1.024 .539 .787 .628 2.375 .375 .219 1 2.500 AJXU12R2505C 1.000 1.024 .539 .787 .633 2.375 .375 .219 1 3.000 AJXU14R0304C 1.000 1.024 .539 .787 .628 2.750 .375 .219 1 3.000 AJXU14R0305C 1.000 1.024 .539 .787 .628 2.750 .375 .219 1 3.000 AJXU12R0306C 1.000 1.024 .539 .787 .630 2.750 .375 .219 1 4.000 AJXU14R0405E 1.500 1.181 .787 1.181 .931 3.750 .625 .375 1 4.000 AJXU14R0406E 1.500 1.181 .787 1.181 .931 3.750 .625 .375 1 4.000 AJXU12R0407E 1.500 1.181 .787 1.181 .936 3.750 .625 .375 1 4.921 AJX14RA12505E 1.500 1.575 - 2.205 .872 3.937 .625 .375 2 4.921 AJX14RA12507E 1.500 1.575 - 2.205 .872 3.937 .625 .375 2 6.299 AJX14RA16006F 2.000 1.693 - 2.835 .754 3.937 .750 .437 2 6.299 AJX14RA16008F 2.000 1.693 - 2.835 .754 3.937 .750 .437 2 SPARE PARTS ( inch) * * T Tool Holder Type D Clamp Screw Clamp Bridge Clamp Bridge Screw Spring Wrench L AJXU06R TS25 ─ ─ ─ TKY08F AJXU08R TS33 ─ ─ ─ TKY08D AJXU09R TS351 AMS3 AJS3010T10 ASS2 TKY10D INDEXABLE MILLING AJXU12R TS43 AMS4 AJS4012T15 ASS2 TKY15T AJXU14R TS54 AMS5 AJS5014T25 ASS3 TKY25T AJX14R TS54 AMS5 AJS5014T25 ASS3 TKY25T * Clamp Torque (lbf-in) : TS25=13, TS33=8.9, TS351=22, TS43=31, TS54=66, AJS3010T10=22, AJS4012T15=31, AJS5014T25=66 L208 a : USA Stock
